Product Details:
|

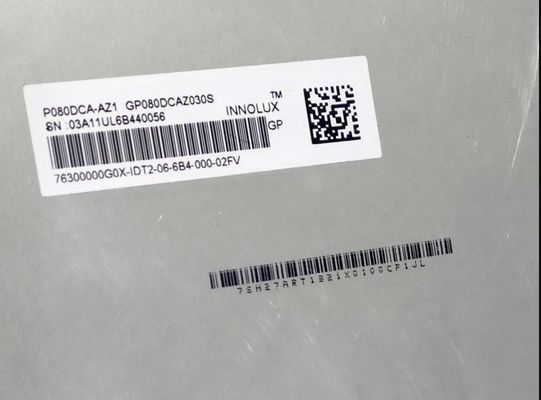

| MODEL NUMBER: | P080DCA-AZ1 | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 8.0INCH | BRIGHTNESS: | 450CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 800(RGB)×1280, WXGA, 188PPI |
| VIEWING ANGLEG: | 85/85/85/85 (Typ.)(CR≥10 | TEMPERATURE RANGE: | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C |
| High Light: | VGA Lcd Video Panel,WVGA Industrial TFT Display,WVGA TFT LCD Panel |
||
| Basic Detail : | Manufacturer | Model Name | P080DCA-AZ1 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 8.0 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -10 ~ 60 °C | ST Temperature | -20 ~ 70 °C |
| Vibration Level | 1.5G (14.7 m/s²) | RoHS |
| Basic Information : | Luminance | 450 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | AAS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.308; Wy:0.333 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6717K | White Uniformity | 1.43 (Max.)(13 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 60% | sRGB | 84% coverage |
| Adobe RGB | 63% coverage | DCI-P3 | 63% coverage | |
| Rec.2020 | 45% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 800(RGB)×1280 [WXGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.04485×0.13455 mm | Pixel Pitch(W×H) | 0.13445×0.13445 mm [188PPI] | |
| Physical Size : | Active Viewing | 107.64(W)×172.224(H) mm | Overall Dim. | 114.66(W)×184.604(H) mm |
| Bezel Opening | - | Overall Depth | 2.3/3.8 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Portrait type |
| Aspect Ratio(W:H) | 10:16 | Shape Style | ||
| Fixation : | Without | |||
| Other Detail : | Mass | 95.0g (Max.) | Surface | Hard coating, Antireflection |
| Signal Electrical : | Input Current | - | Input Voltage | 1.8/5.2/-5.2V (Typ.)(VDDI/AVDD/AVEE) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.23W (Max.) | Signal Interface | MIPI (4 data lanes) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | FH43BW-51S-0.2SHW | 1 pcs | 0.2 mm | 51 pins | ||
| Lamp Features: | Lamp Shape | 4 strings | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | - | |
| Lamp Electrical : | Input Current | 20mA (Typ.) | Input Voltage | 17.5/18v (Typ./Max.) | ||
| Consumption | 1.39/1.44W (Typ./Max.) | |||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 60 pcs / box | 489×382×275 mm |
