P070BAG-CM1 Innolux 7.0" 1024(RGB)×600 500 cd/m² INDUSTRIAL LCD DISPLAY

P070BAG-CM1 Innolux 7.0" 1024(RGB)×600 500 cd/m² INDUSTRIAL LCD DISPLAY
P070BAG-CM1 Innolux 7.0" 1024(RGB)×600 500 cd/m² INDUSTRIAL LCD DISPLAY P070BAG-CM1 Innolux 7.0" 1024(RGB)×600 500 cd/m² INDUSTRIAL LCD DISPLAY P070BAG-CM1 Innolux 7.0" 1024(RGB)×600 500 cd/m² INDUSTRIAL LCD DISPLAY P070BAG-CM1 Innolux 7.0" 1024(RGB)×600 500 cd/m² INDUSTRIAL LCD DISPLAY

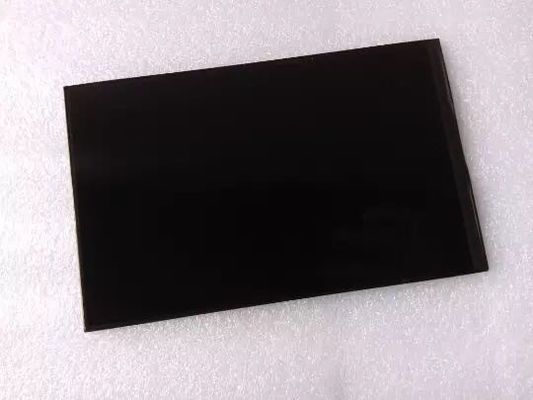

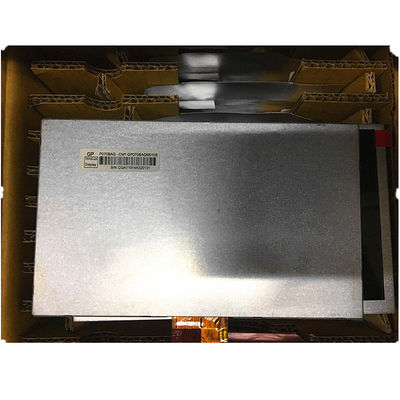

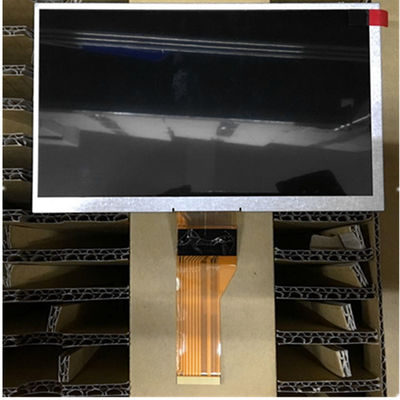

Large Image :  P070BAG-CM1 Innolux 7.0" 1024(RGB)×600 500 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: INNOLUX
Certification: ISO9001
Model Number: P070BAG-CM1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 1000PCS

P070BAG-CM1 Innolux 7.0" 1024(RGB)×600 500 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: P070BAG-CM1 BRAND: INNOLUX
SIZE: 7.0"inch BRIGHTNESS: 500CD/M2
Lamp Type: WLED RESOLUTION: 1024(RGB)×600, WSVGA, 170PPI
VIEWING ANGLEG: 75/75/70/75 (Typ.)(CR≥10 TEMPERATURE RANGE: Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
High Light:

VGA Lcd Video Panel

,

WVGA Industrial TFT Display

,

WVGA TFT LCD Panel

Innolux P070BAG-CM1 Application Details

Basic Info : Panel Brand   Panel Model P070BAG-CM1
Diagonal Size 7.0" Application
Panel Type a-Si TFT-LCD , LCM Model Alias -
Reliability : Operating Temp. -20 ~ 70 °C Storage Temp. -30 ~ 80 °C



Innolux P070BAG-CM1 Mechanical Details

Pixel Features : Pixel Format 1024(RGB)×600 [WSVGA] Dot Pitch 0.0502×0.1432 mm (H×V)
Configuration RGB Vertical Stripe Pixel Pitch 0.1506×0.1432 mm (H×V) [170PPI]
Mechanical Size : Display Area 154.214×85.92 mm (H×V) Bezel Area 156.7×89.1 mm (H×V)
Outline Dim. 164.9×100 mm (H×V) Outline Depth 4.8±0.3 mm
Outline Features : Form Factor Flat Rectangle Orientation Landscape type
Aspect Ratio 16:9 (H:V) Shape Style
Holes & Brackets : Without
Other Features : Weight 140g (Typ.) Surface Hard coating



Innolux P070BAG-CM1 Optical Details

Basic Information : Brightness 500 cd/m² (Typ.) Contrast Ratio 800:1 (Typ.) (Transmissive)
Viewing Angle 75/75/70/75 (Typ.)(CR≥10) Optical Mode TN, Normally White, Transmissive
Viewing Direction 6 o'clock Response Time 10/15 (Typ.)(Tr/Td) (ms)
Color Performance : Chromaticity Wx:0.310; Wy:0.330 Color Numbers 262K/16.7M (6-bit / 6-bit + Dithering)
Color Temperature 6638K White Uniformity 1.33/1.43 (Typ./Max.)(9 points)



Innolux P070BAG-CM1 Backlight Details

Back-light Features: Lamp Shape - Lamp Type WLED Life Time 15K(Typ.) (Hours)
Replacement - Amount - Position Edge light type
Lamp Electrical : Voltage Input 8.4/9.9/10.2V (Typ./Max.) Current Input 265mA (Typ.)
Consumption 2.62W (Typ.)
Interface Features : Type Included in panel signal interface Position - Lamp Driver No



Innolux P070BAG-CM1 Interface Details

Signal Systerm : LVDS (1 ch, 6/8-bit) Logic Voltage -
Signal Electrical : Voltage Input 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) Current Input 35/20/0.26/0.26mA (Typ.)(DIDD/AIDD/IGH/IGL)
Consumption 0.4W (Typ.)
Interface Features : Type FPC Position -
FPC Detail : Brand Model Pin Pitch Pins Amount Configuration
    0.5 mm 40 pins 1 pcs
