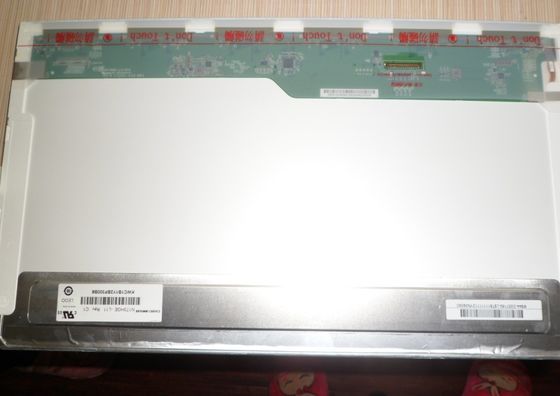

Product Details:
|

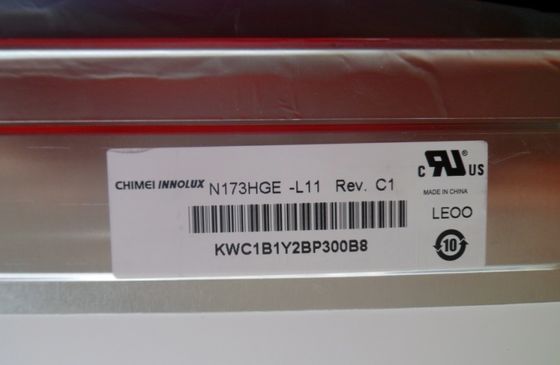

| MODEL NUMBER: | N173HGE-L11 | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 17.3INCH | BRIGHTNESS: | 300CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×1080 (FHD) 127PPI |
| VIEWING ANGLEG: | 70/70/60/60 (Typ.)(CR≥10) | TEMPERATURE RANG: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | VGA Lcd Display Panels,IPS Lcd Display Panels,Antiglare NEC TFT Display |
||
| Basic Information : | Brand | Model | N173HGE-L11 3 Compatible | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 17.3" | Alias | CMO1720 | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| Pixel Features : | Resolution | 1920(RGB)×1080, FHD | Dot Pitch(mm) | 0.0663×0.1989 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.1989×0.1989 (H×V) [127PPI] | |
| Mechanical Size : | Active Area(mm) | 381.888(H) × 214.812(V) | Bezel Area(mm) | 386.18(H) × 218.85(V) |
| Outline Dim.(mm) | 398.1(H) × 232.8(V) | Depth(mm) | 5.7/6.0 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Wedge (PCBA Bent, T≥5.2mm) |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (8-M2) on left, right bezel | |||
| Other Spec : | Weight | 585/600g (Typ./Max.) | Treatment | Antiglare, Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 300 (Typ.) | Contrast Ratio | 650:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 2/6 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 71% | sRGB | 96% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 74% coverage | |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 540/640mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 1.7W (Max.) | |||||
| Signal Type : | LVDS (2 ch, 6-bit) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||

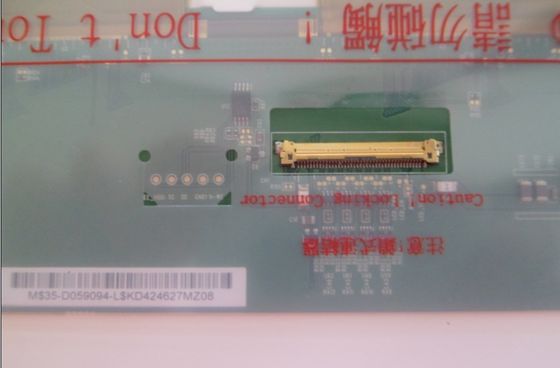

| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| STARCONN | 111A40-0000RA-G3 | 1 pcs | 40 pins | 0.5 mm | LVDS-40P2C6B-010C | |
| Backlight Features: | Shape | 8 strings | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 15K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 30.8/35.2/37.4V (Min./Typ./Max.) | Current Supply | 23mA (Typ.) | ||
| Consumption | 5.38/6.47/7.22W (Min./Typ./Max.) | |||||
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 7.0/12.0/21.0V (Min./Typ./Max.) | Current Supply | 550/625/675mA (Min./Typ./Max.) | ||
| Consumption | 8.5W (Max.) | |||||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
