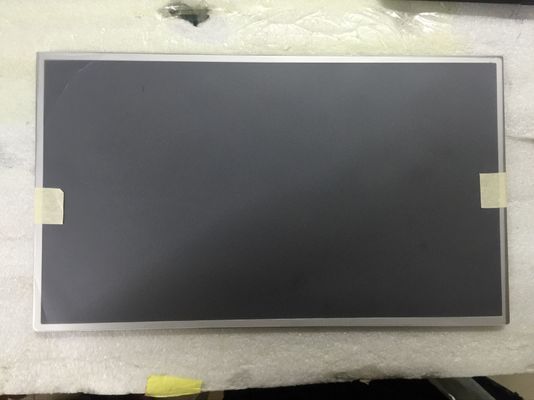

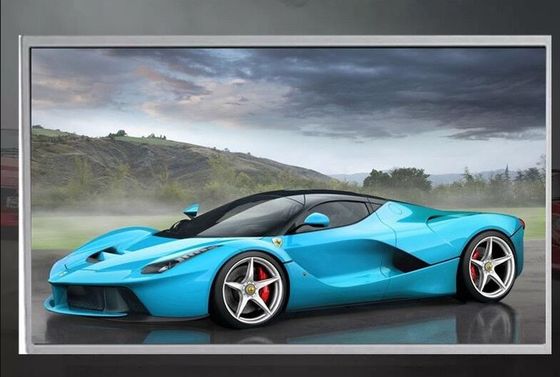

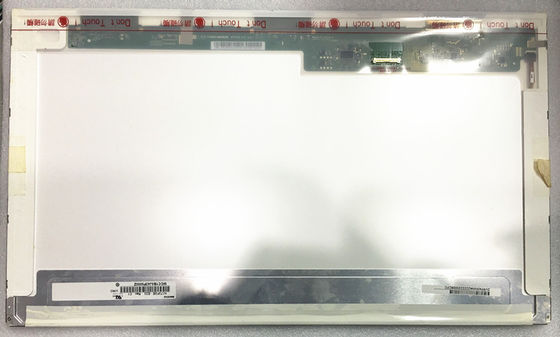

Product Details:
|
| MODEL NUMBER: | N173HGE-E21 | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 17.3"inch | BRIGHTNESS: | 300CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×1080 [FHD] 127PPI |
| VIEWING ANGLEG: | 70/70/60/60 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | VGA Lcd Display Panels,IPS Lcd Display Panels,Antiglare NEC TFT Display |
||
| Basic Information : | Brand | Model | N173HGE-E21 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 17.3" | Alias | CMN1737 | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| Pixel Features : | Resolution | 1920(RGB)×1080, FHD | Dot Pitch(mm) | 0.0663×0.1989 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.1989×0.1989 (H×V) [127PPI] | |
| Mechanical Size : | Active Area(mm) | 381.888(H) × 214.812(V) | Bezel Area(mm) | 386.18(H) × 218.85(V) |
| Outline Dim.(mm) | 398.1(H) × 232.8(V) | Depth(mm) | 5.5/5.8 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Wedge (PCBA Bent, T≥5.2mm) |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (8-M2) on left, right bezel | |||
| Other Spec : | Weight | 555/570g (Typ./Max.) | Treatment | Glare (Haze 0%), Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 300 (Typ.) | Contrast Ratio | 600:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 2/6 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 71% | sRGB | 96% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 74% coverage | |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 440/520mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 1.9W (Max.) | |||||
| Signal Type : | eDP (2 Lanes) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| I-PEX | 20455-030E-12 | 1 pcs | 30 pins | 0.5 mm | EDP-30P2L-020A | |
| Backlight Features: | Shape | 6 strings | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 11S6P | Life Time | 15K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 29.7/33.0/36.4V (Min./Typ./Max.) | Current Supply | 25mA (Typ.) | ||
| Consumption | 4.95/5.46W (Typ./Max.) | |||||
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 7.0/12.0/21.0V (Min./Typ./Max.) | Current Supply | 399/494/571mA (Min./Typ./Max.) | ||
| Consumption | 6.4W (Max.) | |||||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
