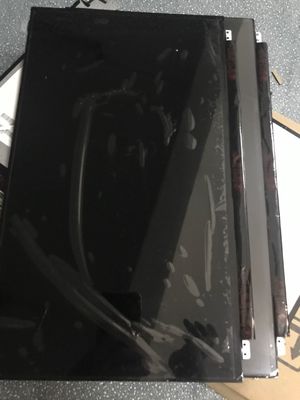

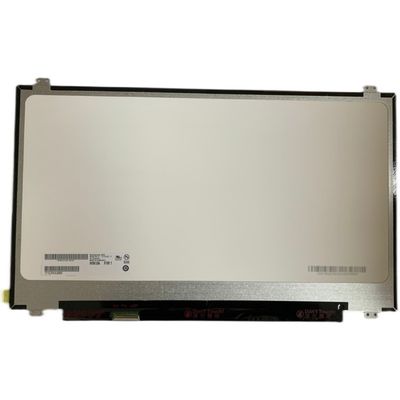

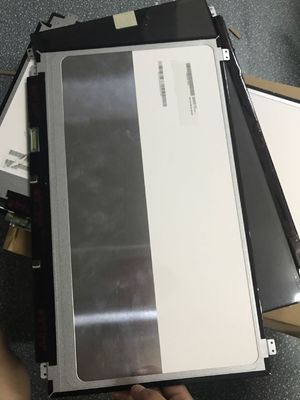

Product Details:
|

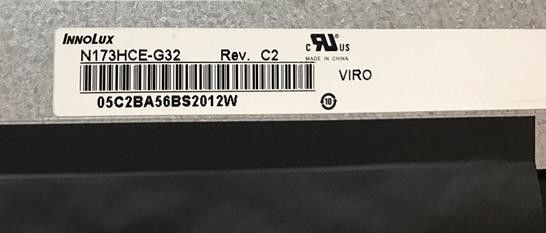

| MODEL NUMBER: | N173HCE-G32 | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 17.3 Inch | BRIGHTNESS: | 300CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×1080 [FHD] 127PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | VGA Lcd Display Panels,IPS Lcd Display Panels,Antiglare NEC TFT Display |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| N173HCE-G32 | a-Si TFT-LCD , LCM | CMN1749 | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Panel Size : | 17.3 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1920(RGB)×1080, FHD | RGB Vertical Stripe | 0.0663×0.1989 mm | 0.1989×0.1989 mm [127PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 381.888×214.812 mm | - | 398.1×250.56 mm | 3.57/4.0 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape type | Flat (PCBA Flat, T3.4~4.0mm) | |
| Fixation : | Face mounting holes (8 pcs) on up, down slugs | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 525/550g (Typ./Max.) | Antiglare, Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 300 cd/m² (Typ.) | AAS, Normally Black, Transmissive | 700:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 89/89/89/89 (Typ.)(CR≥10) | Symmetry | 11/14 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 72% | 99% | 75% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 75% | 54% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.11/1.25 (Typ./Max.)(5 points) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 560/660mA (Typ./Max.) | 3.3V (Typ.) | 2.0W (Max.) | ||||

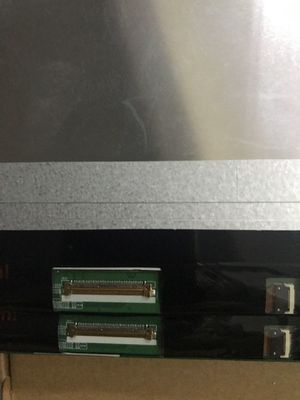

| Interface Features : | Position | Type | Interface | |||
| Connector | eDP (4 Lanes), eDP1.2 | |||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| I-PEX | 20455-040E-76 | 1 pcs | 0.5 mm | 40 pins | ||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 15K(Min.) | - | |
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in panel signal interface | With LED Driver | ||||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| 368/450/476mA (Min./Typ./Max.) | 5.0/12.0/21.0V (Min./Typ./Max.) | 5.71W (Max.) | ||||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
