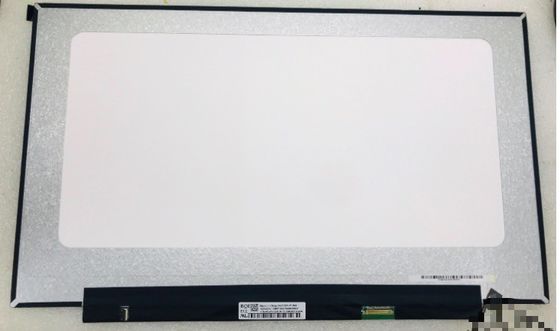

Product Details:
|
| MODEL NUMBER: | N173HCE-E3A | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 17.3 Inch | BRIGHTNESS: | 300CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×1080 (FHD) 127PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | VGA Lcd Display Panels,IPS Lcd Display Panels,Antiglare NEC TFT Display |
||

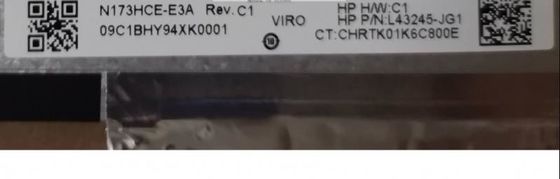

| Basic Info : | Panel Brand | Panel Model | N173HCE-E3A | |
|---|---|---|---|---|
| Diagonal Size | 17.3" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | CMN176C | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| RoHS State | Vibration Rating | 1.5G (14.7 m/s²) |
| Pixel Features : | Pixel Format | 1920(RGB)×1080 [FHD] | Dot Pitch | 0.0663×0.1989 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1989×0.1989 mm (H×V) [127PPI] | |
| Mechanical Size : | Display Area | 381.888×214.812 mm (H×V) | Bezel Area | - |
| Outline Dim. | 389.89×238.31 mm (H×V) | Outline Depth | 3.3/3.5 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | Flat (PCBA Flat, T3.4~4.0mm) | |
| Holes & Brackets : | Without | |||
| Other Features : | Weight | 490/500g (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
| Basic Information : | Brightness | 300 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | AAS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 14/11 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.60 (Max.)(5/13 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 71% | sRGB | 100% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 74% coverage | |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 15K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | - | Position | Edge light type | |
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | With LED Driver |
| Driver Electrical : | Voltage Input | 6.0/12.0/20.0V (Min./Typ./Max.) | Current Input | 426/454mA (Typ./Max.) | ||
| Consumption | 5.44W (Max.) | |||||
| Signal Systerm : | eDP (2 Lanes), eDP1.2 | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 230/258mA (Typ./Max.) | ||
| Consumption | 0.85W (Max.) | |||||
| Interface Features : | Type | Connector | Position | |||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| I-PEX | 20455-030E-76 | 0.5 mm | 30 pins | 1 pcs | EDP-30P2L-020A | |
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 20 pcs / box | - | 540×380×315 mm |
