Product Details:
|

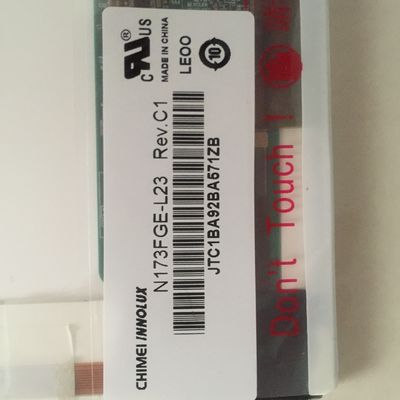

| MODEL NUMBER: | N173FGE-L23 | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 17.3 Inch | BRIGHTNESS: | 220CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1600(RGB)×900 [HD+] 106PPI |
| VIEWING ANGLEG: | 45/45/20/45 (Typ.)(CR≥10 | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | VGA Lcd Display Panels,IPS Lcd Display Panels,Antiglare NEC TFT Display |
||
| Basic Info : | Panel Brand | Panel Model | N173FGE-L23 | |
|---|---|---|---|---|
| Diagonal Size | 17.3" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | CMN1728 | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| RoHS State | Vibration Rating | - |
| Pixel Features : | Pixel Format | 1600(RGB)×900 [HD+] | Dot Pitch | 0.0796×0.2388 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.2388×0.2388 mm (H×V) [106PPI] | |
| Mechanical Size : | Display Area | 382.08×214.92 mm (H×V) | Bezel Area | 386.88×218.32 mm (H×V) |
| Outline Dim. | 398.1×232.8 mm (H×V) | Outline Depth | 5.5/5.8 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | Wedge (PCBA Bent, T≥5.2mm) | |
| Holes & Brackets : | Side mounting holes (8-M2) on left, right bezel | |||
| Other Features : | Weight | 540/555g (Typ./Max.) | Surface | Glare (Haze 0%), Hard coating (3H) |
| Basic Information : | Brightness | 220 cd/m² (Typ.) | Contrast Ratio | 650:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 3/7 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.43 (Max.)(5/13 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 59% | sRGB | 82% coverage |
| Adobe RGB | 62% coverage | DCI-P3 | 62% coverage | |
| Rec.2020 | 44% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Lamp Shape | 5 strings | Lamp Type | WLED | Life Time | 15K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 9S5P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 27.9±2.7V | Current Input | 25mA (Typ.) | ||
| Consumption | 2.84/3.5/4.0W (Min./Typ./Max.) | |||||
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | With LED Driver |
| Driver Electrical : | Voltage Input | 7.5/12.0/21.0V (Min./Typ./Max.) | Current Input | 277/364/375mA (Min./Typ./Max.) | ||
| Consumption | 4.5W (Max.) | |||||
| Signal Systerm : | LVDS (2 ch, 6-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 450±50mA | ||
| Consumption | 1.24W (Max.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| I-PEX | 20455-040E-12 | 0.5 mm | 40 pins | 1 pcs | LVDS-40P2C6B-010C | |
