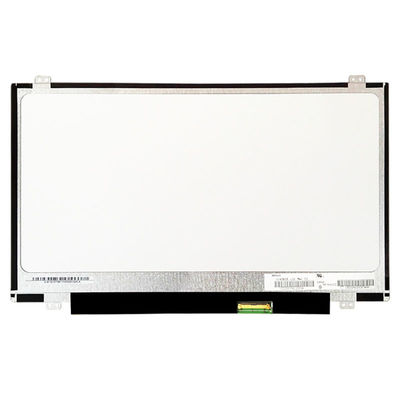

Product Details:
|
| MODEL NUMBER: | N173FGE-E13 | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 17.3INCH | BRIGHTNESS: | 220CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1600(RGB)×900, HD+, 106PPI |
| VIEWING ANGLEG: | 45/45/20/45 (Typ.)(CR≥10 | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | VGA Lcd Display Panels,IPS Lcd Display Panels,Antiglare NEC TFT Display |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| N173FGE-E13 | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Screen Size : | 17.3" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1600(RGB)×900, HD+ | RGB Vertical Stripe | 0.0796×0.2388 mm | 0.2388×0.2388 mm [106PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 382.08×214.92 mm | 386.88×218.32 mm | 398.1×232.8 mm | 5.5/5.8 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | Wedge (PCBA Bent, T≥5.2mm) | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 540/555g (Typ./Max.) | - | Antiglare, Hard coating (3H) | ||
| Holes & Brackets : | Side mounting holes (8-M2) on left, right bezel | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 220 cd/m² (Typ.) | TN, Normally White, Transmissive | 650:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 45/45/20/45 (Typ.)(CR≥10) | 3/7 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| White Uniformity : | 1.33/1.49 (Typ./Max.)(5/13 points) | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 15K(Min.) | - | - | - | |
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| With LED Driver | Included in panel signal interface | - | ||||
| WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 6.0/12.0/21.0V (Min./Typ./Max.) | 277/364/375mA (Min./Typ./Max.) | 4.5W (Max.) | ||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 450/500mA (Typ./Max.) | 1.24W (Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| eDP | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| I-PEX | 20455-030E-12 | 1 pcs | 30 pins | 0.5 mm | ||
