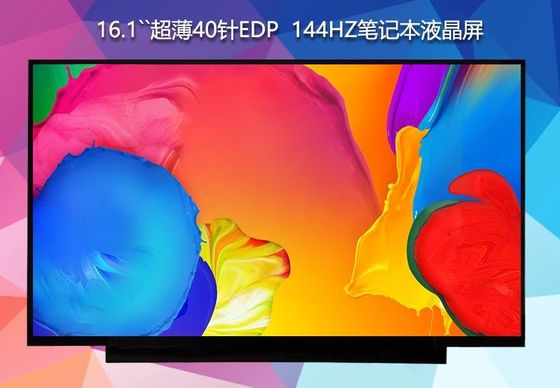

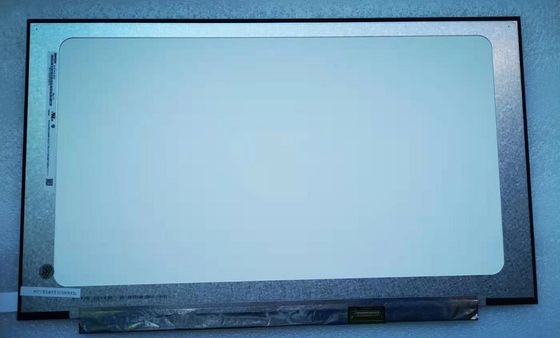

Product Details:
|

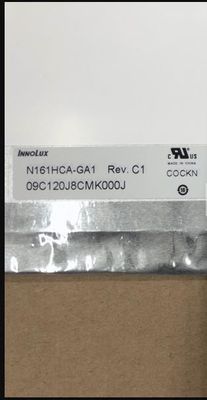

| MODEL NUMBER: | N161HCA-GA1 | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 16.1INCH | BRIGHTNESS: | 300CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×1080 [FHD] 137PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | VGA Lcd Display Panels,IPS Lcd Display Panels,Antiglare NEC TFT Display |
||
| Basic Detail : | Manufacturer | Model Name | N161HCA-GA1 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | CMN1602 | |
| Panel Size | 16.1 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Vibration Level | 1.5G (14.7 m/s²) | RoHS |
| Basic Information : | Luminance | 300 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 4/5 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AAS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.11/1.25 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 71% | sRGB | 100% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 74% coverage | |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1920(RGB)×1080 [FHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0539×0.1617 mm | Pixel Pitch(W×H) | 0.1617×0.1617 mm [137PPI] | |
| Physical Size : | Active Viewing | 355.39(W)×199.91(H) mm | Overall Dim. | 361.9(W)×222.16(H) mm |
| Bezel Opening | - | Overall Depth | 3.05/3.2 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | Slim (PCBA Flat, T≤3.2mm) | |
| Fixation : | Without | |||
| Other Detail : | Mass | 395g (Max.) | Surface | Antiglare, Hard coating (3H) |
| Signal Electrical : | Input Current | - | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | eDP (4 Lanes) | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| I-PEX | 20455-040E-76 | 1 pcs | 0.5 mm | 40 pins | ||
| Refresh Rate : | 144Hz |
|---|---|
| Reverse Scan : | No |
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 15K(Min.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 247/280/314mA (Typ./Max.) | Input Voltage | 5.0/12.0/21.0V (Min./Typ./Max.) | ||
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 20 pcs / box | 500×370×270 mm | - |
