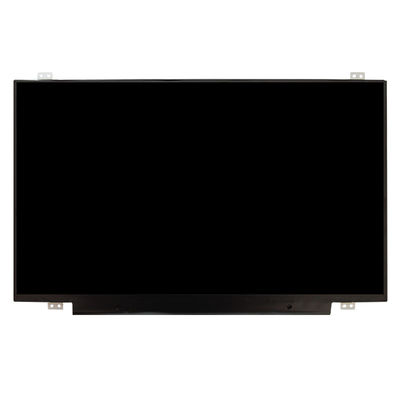

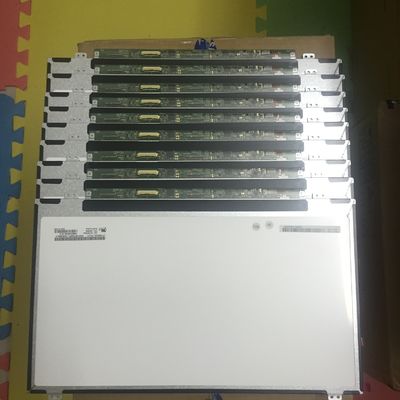

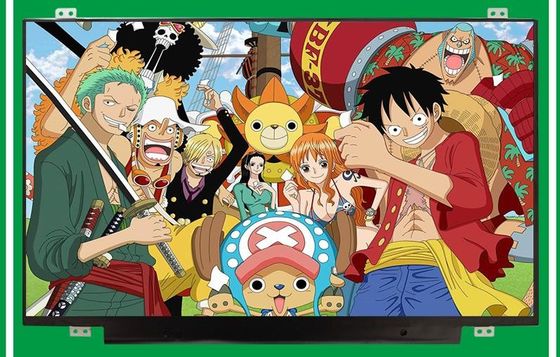

N156HGE-EBB Innolux 15.6" 1920(RGB)×1080 220 cd/m² INDUSTRIAL LCD DISPLAY

N156HGE-EBB Innolux 15.6" 1920(RGB)×1080 220 cd/m² INDUSTRIAL LCD DISPLAY
N156HGE-EBB Innolux 15.6" 1920(RGB)×1080 220 cd/m² INDUSTRIAL LCD DISPLAY N156HGE-EBB Innolux 15.6" 1920(RGB)×1080 220 cd/m² INDUSTRIAL LCD DISPLAY N156HGE-EBB Innolux 15.6" 1920(RGB)×1080 220 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  N156HGE-EBB Innolux 15.6" 1920(RGB)×1080 220 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: INNOLUX
Certification: ISO9001
Model Number: N156HGE-EBB
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 500PCS
Contact Now

N156HGE-EBB Innolux 15.6" 1920(RGB)×1080 220 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: N156HGE-EBB BRAND: INNOLUX
SIZE: 15.6 Inch BRIGHTNESS: 220CD/M2
Lamp Type: WLED RESOLUTION: 1920(RGB)×1080 [FHD] 141PPI
VIEWING ANGLEG: 45/45/20/45 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Highlight:

VGA Lcd Display Panels

,

IPS Lcd Display Panels

,

Antiglare NEC TFT Display

Innolux N156HGE-EBB Application Details

Basic Information :
Brand

N156HGE-EBB 19 CompatibleModel
Type
a-Si TFT-LCD , LCM
Used For

15.6 inchScreen Size
Alias
CMN15CB
Environment :
Storage Temp.
-20 ~ 60 °C
Operating Temp.
0 ~ 50 °C



Innolux N156HGE-EBB Mechanical Details

Pixel Features :
Resolution
1920(RGB)×1080, FHD
Dot Pitch(mm)
0.05975×0.17925 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.17925×0.17925 (H×V) [141PPI]
Mechanical Size :
Active Area(mm)
344.16(H) × 193.59(V)
Bezel Area(mm)
-
Outline Dim.(mm)
359.5(H) × 223.8(V)
Depth(mm)
3.02/3.2 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style
Slim (PCBA Flat, T≤3.2mm)
Aspect Ratio
16:9 (H:V)
Orientation
Landscape type
Mounting :
Face mounting holes (8 pcs) on up, down slugs
Other Spec :
Weight
350/360g (Typ./Max.)
Treatment
Glare (Haze 0%), Hard coating (3H)



Innolux N156HGE-EBB Optical Details

Basic Information :
Luminance(cd/m²)
220 (Typ.)
Contrast Ratio
600:1 (Typ.) (Transmissive)
Viewing Angle
45/45/20/45 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
6 o'clock
Response(ms)
3/8 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
262K (6-bit)
Color Temperature
6485K
White Uniformity
1.25/1.54 (Max.)(5/13 points)
1931 Color Gamlt :
NTSC Ratio
46%
sRGB
64% coverage
Adobe RGB
48% coverage
DCI-P3
48% coverage
Rec.2020
34% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Innolux N156HGE-EBB Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
230/250mA (Typ./Max.)
Consumption
0.86W (Max.)
Signal Type :
eDP (2 Lanes), eDP1.2
Logic Voltage
-
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
I-PEX
20455-030E-12
0.5 mm
30 pins
1 pcs
EDP-30P2L-020A



Innolux N156HGE-EBB Backlight Details

Backlight Features :
Type
WLED
Quantity
-
Position
Edge light type
Replacement
-
Shape
-
Life Time
15K(Min.) (Hours)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
5.0/12.0/21.0V (Min./Typ./Max.)
Current Supply
168/203/214mA (Min./Typ./Max.)
Consumption
2.57W (Max.)



  FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
