TCG057VGLCA-G00 Kyocera 5.7INCH LCM 640×480RGB 300NITS WLED TTL INDUSTRIAL LCD DISPLAY

TCG057VGLCA-G00 Kyocera 5.7INCH LCM 640×480RGB 300NITS WLED TTL INDUSTRIAL LCD DISPLAY
TCG057VGLCA-G00 Kyocera 5.7INCH LCM 640×480RGB 300NITS WLED TTL INDUSTRIAL LCD DISPLAY TCG057VGLCA-G00 Kyocera 5.7INCH LCM 640×480RGB 300NITS WLED TTL INDUSTRIAL LCD DISPLAY TCG057VGLCA-G00 Kyocera 5.7INCH LCM 640×480RGB 300NITS WLED TTL INDUSTRIAL LCD DISPLAY

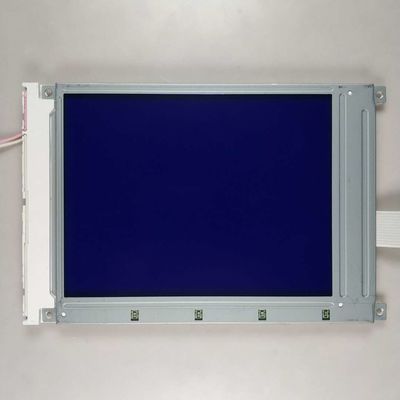

Large Image :  TCG057VGLCA-G00 Kyocera 5.7INCH LCM 640×480RGB 300NITS WLED TTL INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: Kyocera
Certification: ISO9001
Model Number: TCG057VGLCA-G00
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2day
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 50PCS
Contact Now

TCG057VGLCA-G00 Kyocera 5.7INCH LCM 640×480RGB 300NITS WLED TTL INDUSTRIAL LCD DISPLAY

Description
BRAND: Kyocera MODEL NUMBER: TCG057VGLCA-G00
SIZE: 5.7INCH RESOLUTION: 640×480RGB
BRIGHTNESS: 300 Cd/m² (Typ.) Signal Interface: Parallel RGB (1 Ch, 6-bit) , 33 Pins Connector
Lamp Type: WLED , 50K Hours , Without Driver Environment: Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
Highlight:

WLED Industrial TFT Display

,

Hard Coating Industrial TFT Display

,

Monochrome Industrial TFT Display

Kyocera TCG057VGLCA-G00 Application Details

Basic Information :
Brand

TCG057VGLCA-G00Model
Type
a-Si TFT-LCD , LCM
Used For

5.7 inchScreen Size
Alias
-
Environment :
Storage Temp.
-30 ~ 80 °C
Operating Temp.
-20 ~ 70 °C
RoHS

-Vibration



Kyocera TCG057VGLCA-G00 Mechanical Details

Pixel Features :
Resolution
640(RGB)×480, VGA
Dot Pitch(mm)
0.060×0.180 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.180×0.180 (H×V) [141PPI]
Mechanical Size :
Active Area(mm)
115.2(H) × 86.4(V)
Bezel Area(mm)
118.4(H) × 89.6(V)
Outline Dim.(mm)
144(H) × 104.8(V)
Depth(mm)
13.0±0.5
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
4:3 (H:V)
Orientation
Landscape type
Mounting :
Rear mounting holes (4-Φ2.6)
Other Spec :
Weight
210g (Typ.)
Treatment
Glare (Haze 0%)



Kyocera TCG057VGLCA-G00 Optical Details

Basic Information :
Luminance(cd/m²)
300 (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Viewing Angle
80/80/80/80 (Typ.)(CR≥5)
Display Mode
TN, Normally White, Transmissive
Best View on
-
Response(ms)
10/25 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.340; Wy:0.360
Display Colors
262K (6-bit)
Color Temperature
5208K
White Uniformity
-
1931 Color Gamlt :
NTSC Ratio
50%
sRGB
67% coverage
Adobe RGB
52% coverage
DCI-P3
52% coverage
Rec.2020
38% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)





Kyocera TCG057VGLCA-G00 Electronics Details

Frame Rate :
55Hz
Reverse Scan :
Yes (U/D, L/R)
Time Controller (T-CON) :
Embedded T-CON



Kyocera TCG057VGLCA-G00 Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
150/195mA (Typ./Max.)
Signal Type :
Parallel RGB (1 ch, 6-bit)
Logic Voltage
0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
IRISO
IMSA-9632S-33Z02-GF1
0.5 mm
33 pins
1 pcs
DRGB-33P1C6B-020A



Kyocera TCG057VGLCA-G00 Backlight Details

Backlight Features :
Type
WLED
Quantity
-
Position
Edge light type
Replacement
-
Shape
-
Life Time
50K(Typ.) (Hours)
Lamp Electrical :
Voltage Supply
23.1/25.9V (Typ./Max.)
Current Supply
25mA (Typ.)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
JST
SHLP-06V-S-B
1.0 mm
6 pins
1 pcs
BLE-6PINS-AAACCC
Backlight Driver :
No



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.



TCG057VGLCA-G00 Kyocera 5.7INCH LCM 640×480RGB 300NITS WLED TTL INDUSTRIAL LCD DISPLAY 0TCG057VGLCA-G00 Kyocera 5.7INCH LCM 640×480RGB 300NITS WLED TTL INDUSTRIAL LCD DISPLAY 1
