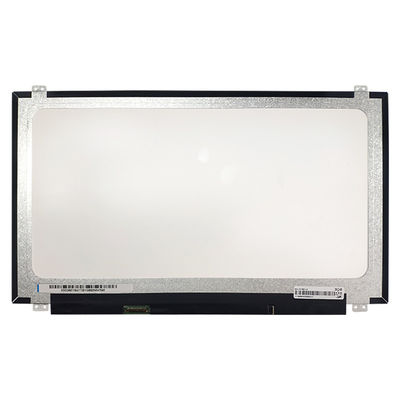

Product Details:
|
| MODEL NUMBER: | N156HCE-EBA | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 15.6 Inch | BRIGHTNESS: | 220CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×1080 [FHD] 141PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | QVGA Square Tft Display,WLED LVDS Industrial Lcd Panel,VGA Touch Lcd Video Display |
||
| Basic Information : | Manufacturer | Panel Model 39 Compatible | Panel Type | Alias |
|---|---|---|---|---|
| N156HCE-EBA | a-Si TFT-LCD , LCM | CMN15D8 | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 220 (Typ.) | 89/89/89/89 (Typ.)(CR≥10) | 14/11 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | AAS, Normally Black, Transmissive | 800 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 47% | 66% | 50% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 49% | 35% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.18/1.54 (Max.)(5/13 points) | ||
| Panel Size : | 15.6" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1920(RGB)×1080 [FHD] | RGB Vertical Stripe | 0.17925×0.17925 [141PPI] | 0.05975×0.17925 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 344.16(H) × 193.59(V) | - | 359.5(H) × 223.8(V) | 3.03/3.2 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | Slim (PCBA Flat, T≤3.2mm) | |
| Mounting : | Face mounting holes (8 pcs) on up, down slugs | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 355/365g (Typ./Max.) | - | Glare (Haze 0%), Hard coating (3H) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 15K(Min.) | - | |
| Interface Features : | Position | Backlight Driver | Type | |||
| - | With LED Driver | Included in panel signal interface | ||||
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 5.0/12.0/21.0V (Min./Typ./Max.) | 192/232/245mA (Min./Typ./Max.) | 2.93W (Max.) | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 260/300mA (Typ./Max.) | 1.0W (Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| eDP (2 Lanes) | Connector | |||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| I-PEX | 20455-030E-12 | 0.5 mm | 30 pins | 1 pcs | EDP-30P2L-020A | |
