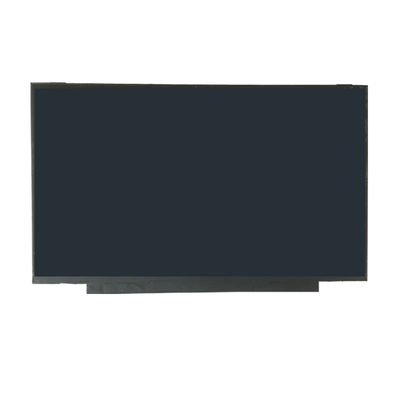

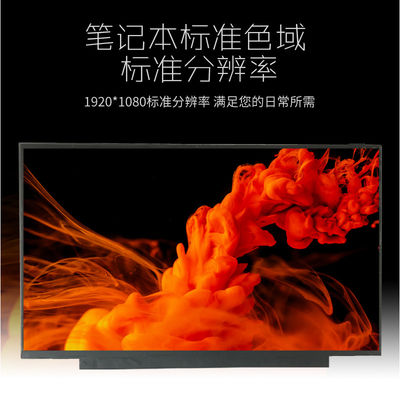

N156HCA-EA3 Innolux 15.6" 1920(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY

N156HCA-EA3 Innolux 15.6" 1920(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY
N156HCA-EA3 Innolux 15.6" 1920(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY N156HCA-EA3 Innolux 15.6" 1920(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY N156HCA-EA3 Innolux 15.6" 1920(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  N156HCA-EA3 Innolux 15.6" 1920(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: INNOLUX
Certification: ISO9001
Model Number: N156HCA-EA3
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 100PCS
Contact Now

N156HCA-EA3 Innolux 15.6" 1920(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: N156HCA-EA3 BRAND: INNOLUX
SIZE: 15.6 Inch BRIGHTNESS: 300CD/M2
Lamp Type: WLED RESOLUTION: 1920(RGB)×1080 [FHD] 141PPI
VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Highlight:

QVGA Square Tft Display

,

WLED LVDS Industrial Lcd Panel

,

VGA Touch Lcd Video Display

Innolux N156HCA-EA3 Application Details

Basic Info :
Panel Brand

N156HCA-EA3Panel Model
Diagonal Size
15.6"
Application

a-Si TFT-LCD , LCMPanel Type
Model Alias
CMN1512
Reliability :
Operating Temp.
0 ~ 50 °C
Storage Temp.
-20 ~ 60 °C
RoHS State

1.5G (14.7 m/s²)Vibration Rating



Innolux N156HCA-EA3 Optical Details

Basic Detail :
Luminance
300 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
11/9 (Typ.)(Tr/Td) ms
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Operating Mode
AAS, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
16.7M (8-bit)
Color Temperature
6485K
White Variation
1.25/1.54 (Max.)(5/13 points)
1931 Color Gamlt :
NTSC Ratio
71%
sRGB
100% coverage
Adobe RGB
74% coverage
DCI-P3
74% coverage
Rec.2020
53% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Innolux N156HCA-EA3 Mechanical Details

Pixel Features :
Number of Pixel
1920(RGB)×1080, FHD
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.05975×0.17925 mm
Pixel Pitch(W×H)
0.17925×0.17925 mm [141PPI]
Physical Size :
Active Viewing
344.16(W)×193.59(H) mm
Overall Dim.
350.66(W)×216.2(H) mm
Bezel Opening
-
Overall Depth
3.05/3.2 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
16:9
Shape Style
Slim (PCBA Flat, T≤3.2mm)
Fixation :
Without
Other Detail :
Mass
355/370g (Typ./Max.)
Surface
Antiglare, Hard coating (3H)



Innolux N156HCA-EA3 Interface Detail

Signal Electrical :
Input Current
204/270mA (Typ./Max.)
Input Voltage
3.3V (Typ.)
Consumption
0.89W (Max.)
Signal Interface
eDP (2 Lanes)
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
I-PEX
20455-030E-76
0.5 mm
30 pins
1 pcs
EDP-30P2L-020A



Innolux N156HCA-EA3 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
-
Position
Edge light type
Exchange
-
Lamp Shape
-
Lamp Life
15K(Min.) (Hours)
Lamp Electrical :
Input Voltage
26/29/30V (Min./Typ./Max.)
Input Current
123mA (Typ.)
Consumption
3.2/3.57/3.69W (Min./Typ./Max.)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Input Voltage
5.0/12.0/21.0V (Min./Typ./Max.)
Input Current
310/265/374mA (Min./Typ./Max.)
Consumption
4.5W (Max.)



Innolux N156HCA-EA3 Packing Details

Package Box : Amount Size (L×W×H) Weight
20 pcs / box - 500×390×320 mm





FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
