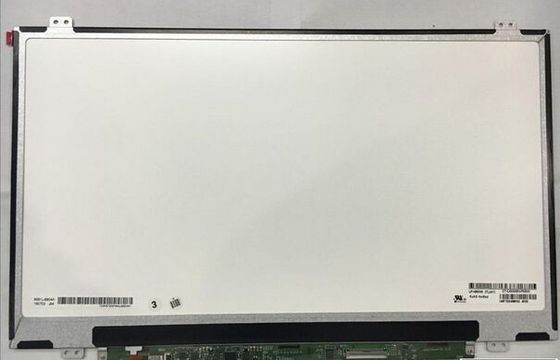

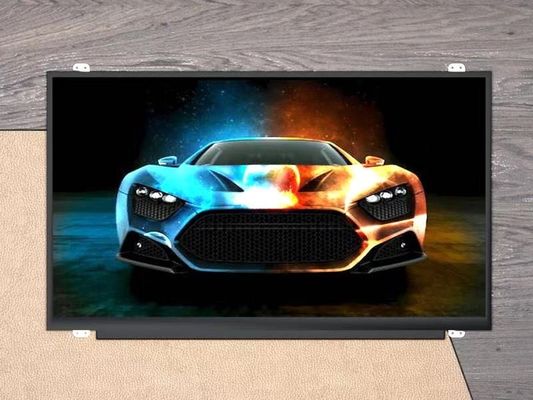

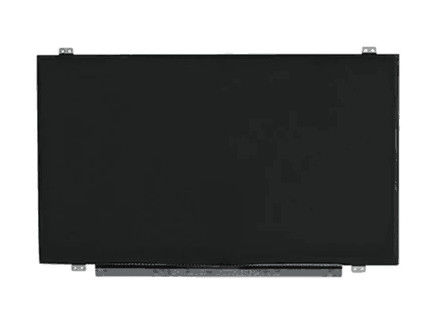

Product Details:
|
| MODEL NUMBER: | N156BGE-L41 | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 15.6inch | BRIGHTNESS: | 200 Cd/m² (Typ.) |
| Lamp Type: | WLED | RESOLUTION: | 1366(RGB)×768, WXGA, 100PPI |
| VIEWING ANGLEG: | 45/45/20/45 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | QVGA Square Tft Display,WLED LVDS Industrial Lcd Panel,VGA Touch Lcd Video Display |
||
| Basic Info : | Panel Brand | Panel Model | N156BGE-L41 26 Compatible | |
|---|---|---|---|---|
| Diagonal Size | 15.6" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | CMO15AB | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| Pixel Features : | Pixel Format | 1366(RGB)×768 [WXGA] | Dot Pitch | 0.084×0.252 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.252×0.252 mm (H×V) [100PPI] | |
| Mechanical Size : | Display Area | 344.232×193.536 mm (H×V) | Bezel Area | 347.36×196.59 mm (H×V) |
| Outline Dim. | 359.5×223.8 mm (H×V) | Outline Depth | 3.5/3.8 (Typ.Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | Flat (PCBA Flat, T3.4~4.0mm) | |
| Holes & Brackets : | Face mounting holes (8 pcs) on up, down slugs | |||
| Other Features : | Weight | 410±15g | Surface | Glare (Haze 0%), Hard coating (3H) |
| Basic Information : | Brightness | 200 cd/m² (Typ.) | Contrast Ratio | 650:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 3/7 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.11/1.25 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 45% | sRGB | 63% coverage |
| Adobe RGB | 47% coverage | DCI-P3 | 47% coverage | |
| Rec.2020 | 33% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 12K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | - | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 30.8/31.9/33.0V (Min./Typ./Max.) | Current Input | 56.63/62.99/66.15mA (Min./Typ./Min.) | ||
| Consumption | 1.75/2.01/2.18W (Min./Typ./Max.) | |||||
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | With LED Driver |
| Driver Electrical : | Voltage Input | 6.0/12.0/21.0V (Min./Typ./Max.) | Current Input | 171/197/214mA (Min./Typ./Max.) | ||
| Consumption | 2.57W (Max.) | |||||
| Signal Systerm : | LVDS (1 ch, 6-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 270/320mA (Typ./Max.) | ||
| Consumption | 1.86W (Typ.) | |||||
| Interface Features : | Type | Connector | Position | |||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| I-PEX | 20455-040E-12 | 0.5 mm | 40 pins | 1 pcs | LVDS-40P1C6B-060C | |
