Product Details:
|

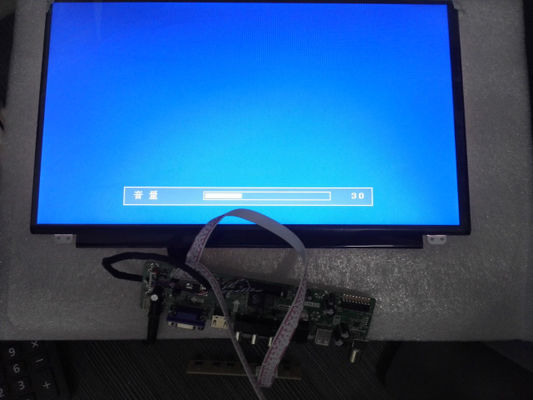

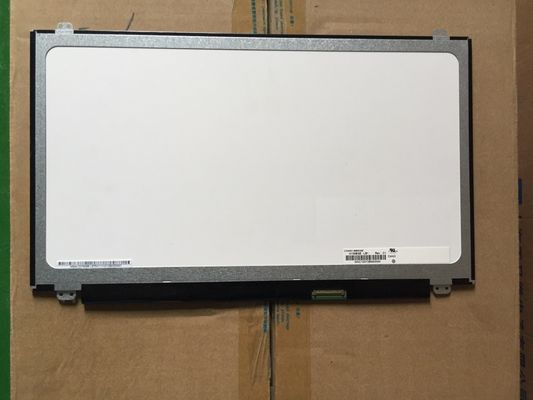

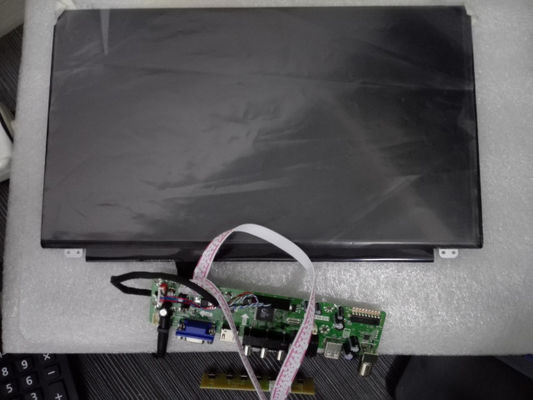

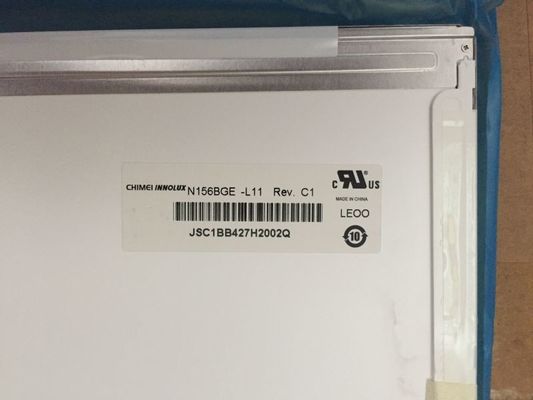

| MODEL NUMBER: | N156BGE-L11 | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 15.6 Inch | BRIGHTNESS: | 220CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1366(RGB)×768 (WXGA) 100PPI |
| VIEWING ANGLEG: | 45/45/20/45 (Typ.)(CR≥10 | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | QVGA Square Tft Display,WLED LVDS Industrial Lcd Panel,VGA Touch Lcd Video Display |
||
| Basic Information : | Brand | Model 64 Compatible | Type | Model Alias |
|---|---|---|---|---|
| N156BGE-L11 | a-Si TFT-LCD , LCM | CMO15A3 | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Panel Size : | 15.6 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1366(RGB)×768, WXGA | RGB Vertical Stripe | 0.084×0.252 mm | 0.252×0.252 mm [100PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 344.232×193.536 mm | 349.58×198.29 mm | 359.3×209.5 mm | 5.2/5.5 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape type | Wedge (PCBA Bent, T≥5.2mm) | |
| Fixation : | Side mounting holes (8-M2) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 430/445g (Typ./Max.) | Antiglare, Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 220 cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 45/45/20/45 (Typ.)(CR≥10) | 6 o'clock | 3/8 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 61% | 85% | 64% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 64% | 46% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.25/1.54 (Max.)(5/13 points) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 340±30mA | 3.3V (Typ.) | 1.221 (Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| Connector | LVDS (1 ch, 6-bit) | |||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| I-PEX | 20455-040E-12 | 1 pcs | 0.5 mm | 40 pins | LVDS-40P1C6B-060J | |
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 15K(Min.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 120±6mA | 22.4/25.6/27.2V (Min./Typ./Max.) | |||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in panel signal interface | With LED Driver | ||||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| 253/301/357mA (Min./Typ./Max.) | 6.0/12.0/21.0V (Min./Typ./Max.) | 3.75W (Max.) | ||||
