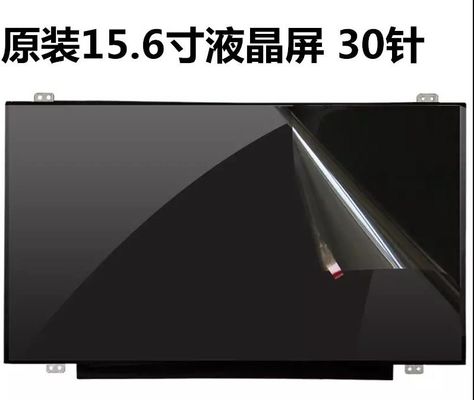

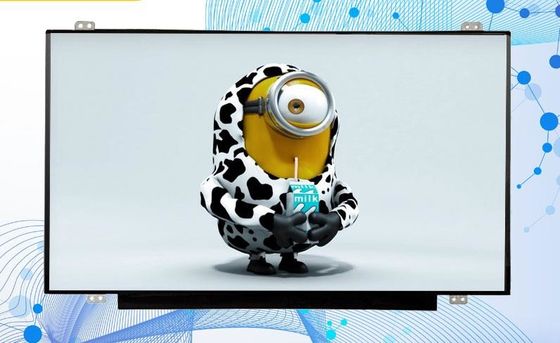

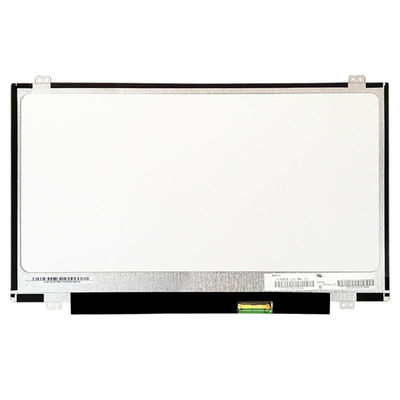

Product Details:
|

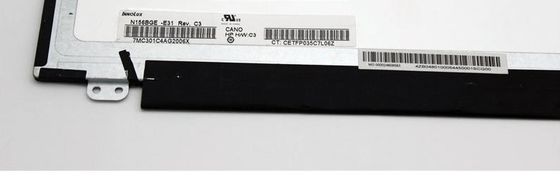

| MODEL NUMBER: | N156BGE-E31 | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 15.6 Inch | BRIGHTNESS: | 200 Cd/m² (Typ.) |
| Lamp Type: | WLED | RESOLUTION: | 1366(RGB)×768, WXGA, 100PPI |
| VIEWING ANGLEG: | 45/45/20/45 (Typ.)(CR≥10 | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | QVGA Square Tft Display,WLED LVDS Industrial Lcd Panel,VGA Touch Lcd Video Display |
||
| Basic Information : | Manufacturer | Panel Model 23 Compatible | Panel Type | Alias |
|---|---|---|---|---|
| N156BGE-E31 | a-Si TFT-LCD , LCM | CMN15BE | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 200 (Typ.) | 45/45/20/45 (Typ.)(CR≥10) | 3/8 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 6 o'clock | TN, Normally White, Transmissive | 400 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 49% | 68% | 51% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 51% | 36% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.25 (Max.)(5 points) | ||
| Panel Size : | 15.6" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1366(RGB)×768 [WXGA] | RGB Vertical Stripe | 0.252×0.252 [100PPI] | 0.084×0.252 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 344.232(H) × 193.536(V) | 347.36(H) × 196.59(V) | 359.5(H) × 223.8(V) | 3.5/3.8 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | Flat (PCBA Flat, T3.4~4.0mm) | |
| Mounting : | Face mounting holes (8 pcs) on up, down slugs | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 410/425g (Max.) | - | Antiglare, Hard coating (3H) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 12K(Min.) | - | |
| Interface Features : | Position | Backlight Driver | Type | |||
| - | With LED Driver | Included in panel signal interface | ||||
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 6.0/12.0/21.0V (Min./Typ./Max.) | 116/145/163mA (Min./Typ./Max.) | 1.86W (Max.) | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 300/340mA (Typ./Max.) | 1.0W (Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| eDP (1 Lane) | Connector | |||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| I-PEX | 20455-030E-12 | 0.5 mm | 30 pins | 1 pcs | EDP-30P1L-030A | |
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 20 pcs / box | 11.36 Kgs | 500×370×270 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
