Product Details:
|

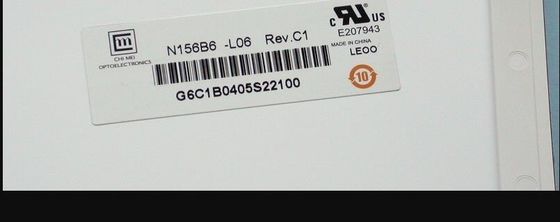

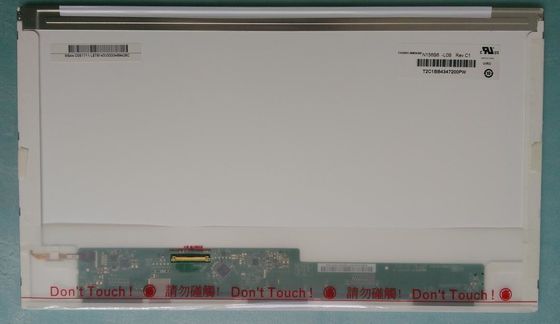

| MODEL NUMBER: | N156B6-L06 | BRAND: | CMO |
|---|---|---|---|

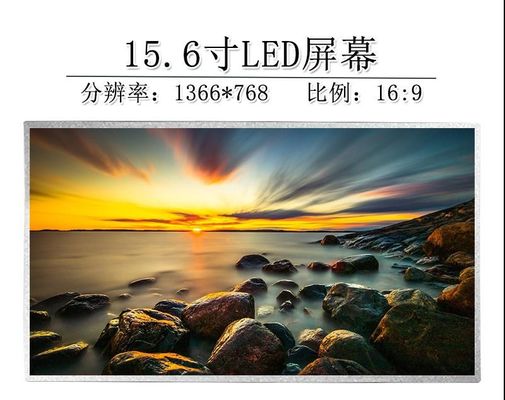

| SIZE: | 15.6 Inch | BRIGHTNESS: | 170 Cd/m² (Typ.) |
| Lamp Type: | WLED | RESOLUTION: | 1366(RGB)×768 (WXGA) 100PPI |
| VIEWING ANGLEG: | 45/45/20/45 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | QVGA Square Tft Display,WLED LVDS Industrial Lcd Panel,VGA Touch Lcd Video Display |
||
| Basic Info : | Panel Brand | Panel Model | N156B6-L06 64 Compatible | |
|---|---|---|---|---|
| Diagonal Size | 15.6" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | CMO1680 | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| Pixel Features : | Pixel Format | 1366(RGB)×768 [WXGA] | Dot Pitch | 0.084×0.252 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.252×0.252 mm (H×V) [100PPI] | |
| Mechanical Size : | Display Area | 344.232×193.536 mm (H×V) | Bezel Area | 348.43×197.74 mm (H×V) |
| Outline Dim. | 359.3×209.5 mm (H×V) | Outline Depth | 5.2/5.5 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | Wedge (PCBA Bent, T≥5.2mm) | |
| Holes & Brackets : | Side mounting holes (8-M2) on left, right bezel | |||
| Other Features : | Weight | 430/445g (Typ./Max.) | Surface | Glare (Haze 0%), Hard coating (3H) |
| Basic Information : | Brightness | 170 cd/m² (Typ.) | Contrast Ratio | 650:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 3/5 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 61% | sRGB | 82% coverage |
| Adobe RGB | 63% coverage | DCI-P3 | 63% coverage | |
| Rec.2020 | 45% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 15K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | - | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 23.2/25.6/28.0V (Min./Typ./Max.) | Current Input | |||
| Consumption | 2.65/3.07/3.53W (Min./Typ./Max.) | |||||
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | With LED Driver |
| Driver Electrical : | Voltage Input | 6.0/12.0/21.0V (Min./Typ./Max.) | Current Input | 253/301/357mA (Min./Typ./Max.) | ||
| Consumption | 3.61W (Typ.) | |||||
| Signal Systerm : | LVDS (1 ch, 6-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 350/380/400mA (Min./Typ./Max.) | ||
| Consumption | 2.04W (Typ.) | |||||
| Interface Features : | Type | Connector | Position | |||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| I-PEX | 20455-040E-12 | 0.5 mm | 40 pins | 1 pcs | LVDS-40P1C6B-060B | |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
