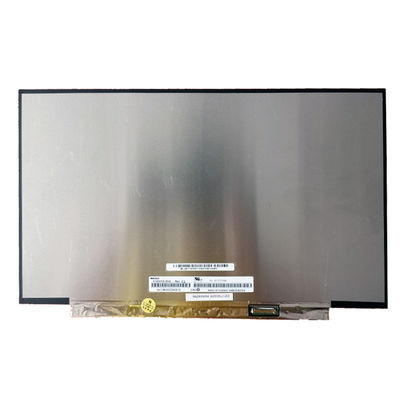

Product Details:
|

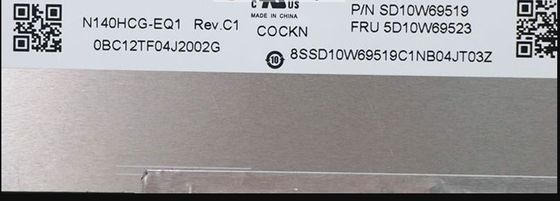

| MODEL NUMBER: | N140HCG-EQ1 | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 14.0 Inch | Signal Interface: | LVDS |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×1080, FHD, 157PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | QVGA Square Tft Display,WLED LVDS Industrial Lcd Panel,VGA Touch Lcd Video Display |
||
| Basic Information : | Brand | Model | N140HCG-EQ1 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 14.0" | Alias | - | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| RoHS | Vibration | 1.5G (14.7 m/s²) |
| Pixel Features : | Resolution | 1920(RGB)×1080, FHD | Dot Pitch(mm) | 0.05362×0.16086 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.16086×0.16086 (H×V) [157PPI] | |
| Mechanical Size : | Active Area(mm) | 308.851(H) × 173.73(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 315.01(H) × 185.84(V) | Depth(mm) | 2.25/2.4 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type |
| Basic Information : | Luminance(cd/m²) | - | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | AAS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 14/11 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.33/1.54 (Typ./Max.)(13 points) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | - | ||
|---|---|---|---|---|---|---|
| Signal Type : | eDP (2 Lanes) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| I-PEX | 20455-030E-76 | 1 pcs | 30 pins | 0.5 mm | ||
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 15K(Min.) (Hours) | |
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 5.0/12.0/21.0V (Min./Typ./Max.) | Current Supply | |||
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
