Product Details:
|

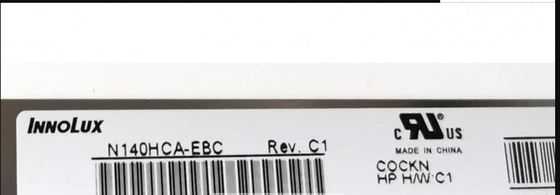

MODEL NUMBER: | N140HCA-EBC | BRAND: | INNOLUX |
---|---|---|---|

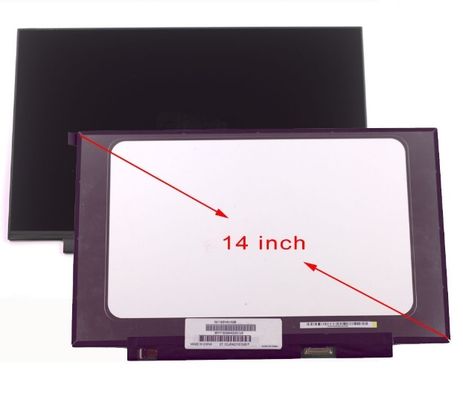

SIZE: | 14.0 Inch | BRIGHTNESS: | 250CD/M2 |

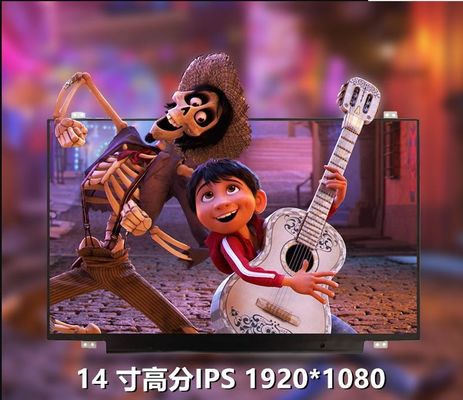

Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×1080 [FHD] 157PPI |
VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
High Light: | WVGA TFT LCD Panel,VGA Lcd Display Panels,WVGA Industrial Lcd Panel |
Basic Info : | Panel Brand | Panel Model | N140HCA-EBC | |
---|---|---|---|---|
Diagonal Size | 14.0" | Application | ||
Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
RoHS State | Vibration Rating | - |
Pixel Features : | Pixel Format | 1920(RGB)×1080 [FHD] | Dot Pitch | 0.0537×0.1611 mm (H×V) |
---|---|---|---|---|
Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1611×0.1611 mm (H×V) [157PPI] | |
Mechanical Size : | Display Area | 309.31×173.99 mm (H×V) | Bezel Area | - |
Outline Dim. | 315.35×197.22 mm (H×V) | Outline Depth | 2.75/3.0 (Typ./Max.) mm | |
Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 16:9 (H:V) | Shape Style |
Basic Information : | Brightness | 250 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
---|---|---|---|---|
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | AAS, Normally Black, Transmissive | |
Viewing Direction | Symmetry | Response Time | 14/11 (Typ.)(Tr/Td) (ms) | |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K (6-bit) |
Color Temperature | 6485K | White Uniformity | - | |
1931 Color Gamlt : | NTSC Ratio | 47% | sRGB | 66% coverage |
Adobe RGB | 50% coverage | DCI-P3 | 49% coverage | |
Rec.2020 | 35% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Frame Frequency : | 60Hz |
---|---|
Reverse Scan : | No |

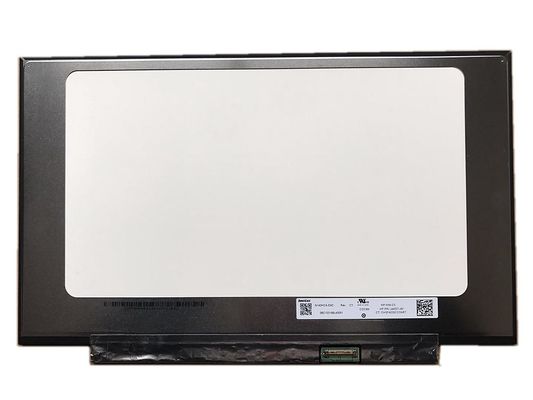

with a built-in WLED backlight, without touch screen. N140HCA-EBC supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 309.31(W)×173.99(H) mm, outline size of 315.35(W)×197.22(H)×3(D) mm. As a AAS, Normally Black, Transmissive LCM product, N140HCA-EBC can provides 250 cd/m² display brightness 800:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14/11 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type. N140HCA-EBC utilizes eDP as it's signal inputting systerm
