Product Details:
|

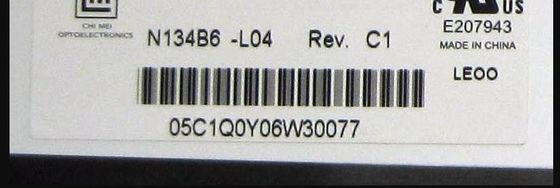

| MODEL NUMBER: | N134B6-L04 | BRAND: | CMO |
|---|---|---|---|
| SIZE: | 13.4 Inch | BRIGHTNESS: | 220CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1366(RGB)×768, WXGA, 117PPI |
| VIEWING ANGLEG: | 45/45/20/45 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | WVGA TFT LCD Panel,VGA Lcd Display Panels,WVGA Industrial Lcd Panel |
||
| Basic Detail : | Manufacturer | Model Name | N134B6-L04 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | CMO1316 | |
| Panel Size | 13.4 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Basic Information : | Luminance | 220 cd/m² (Typ.) | Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 2/6 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 49% | sRGB | 68% coverage |
| Adobe RGB | 51% coverage | DCI-P3 | 51% coverage | |
| Rec.2020 | 37% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1366(RGB)×768 [WXGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.072×0.217 mm | Pixel Pitch(W×H) | 0.217×0.217 mm [117PPI] | |
| Physical Size : | Active Viewing | 296.422(W)×166.656(H) mm | Overall Dim. | - |
| Bezel Opening | - | Overall Depth | 3.2/3.5 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | Flat (PCBA Flat, T3.4~4.0mm) | |
| Fixation : | Face mounting holes (4 pcs) on left, right slugs | |||
| Other Detail : | Mass | 285/300g (Typ./Max.) | Surface | Glare (Haze 0%), Hard coating (3H) |
| Signal Electrical : | Input Current | 260/280mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 1.66W (Typ.) | Signal Interface | LVDS (1 ch, 6-bit) | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |

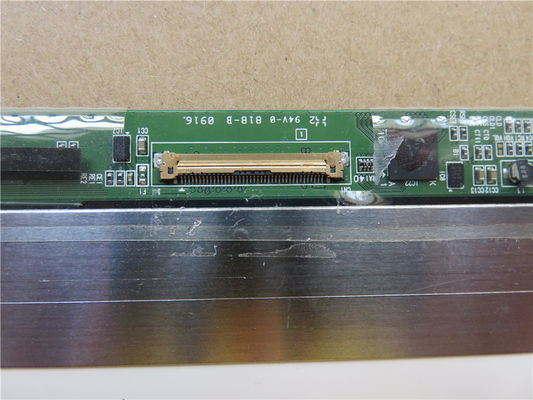

| I-PEX | 20455-040E-12 | 1 pcs | 0.5 mm | 40 pins | LVDS-40P1C6B-060B | |
| Lamp Features: | Lamp Shape | 6 strings | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 7S6P | Life | 12K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 120±6mA | Input Voltage | 23.8±0.7V | ||
| Consumption | 2.47/2.69/3.0W (Min./Typ./Max.) | |||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | - | Input Voltage | 7.0/12.0/20.0V (Min./Typ./Max.) | ||
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 20 pcs / box | 435×350×320 mm | 9.8 Kgs |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
