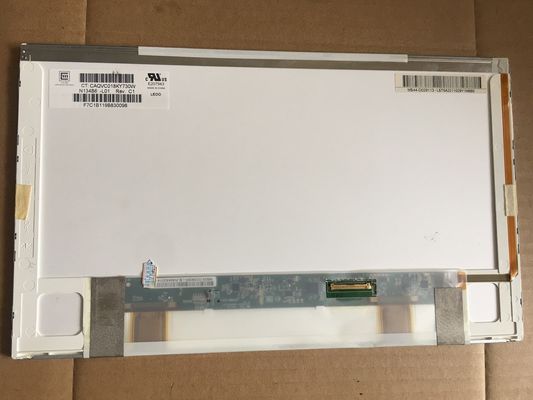

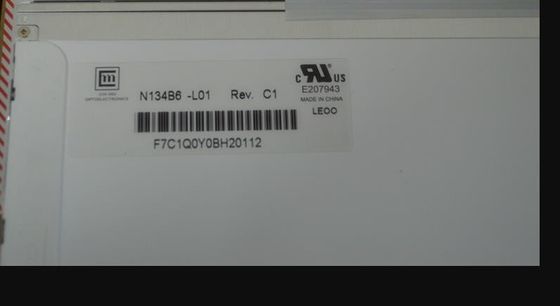

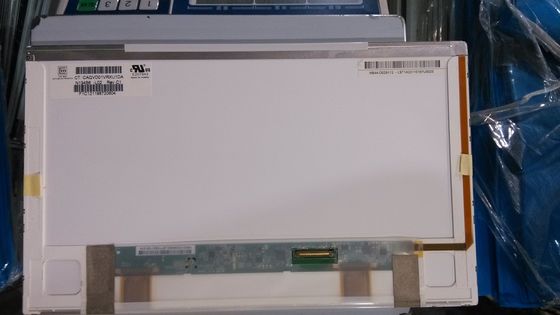

N134B6-L01 CMO 13.4" 1366(RGB)×768 220 cd/m² INDUSTRIAL LCD DISPLAY

N134B6-L01 CMO 13.4" 1366(RGB)×768 220 cd/m² INDUSTRIAL LCD DISPLAY
N134B6-L01 CMO 13.4" 1366(RGB)×768 220 cd/m² INDUSTRIAL LCD DISPLAY N134B6-L01 CMO 13.4" 1366(RGB)×768 220 cd/m² INDUSTRIAL LCD DISPLAY N134B6-L01 CMO 13.4" 1366(RGB)×768 220 cd/m² INDUSTRIAL LCD DISPLAY N134B6-L01 CMO 13.4" 1366(RGB)×768 220 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  N134B6-L01 CMO 13.4" 1366(RGB)×768 220 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: CMO
Certification: ISO9001
Model Number: N134B6-L01
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 100PCS
Contact Now

N134B6-L01 CMO 13.4" 1366(RGB)×768 220 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: N134B6-L01 BRAND: CMO
SIZE: 13.4 Inch BRIGHTNESS: 220CD/M2
Lamp Type: WLED RESOLUTION: 1366(RGB)×768, WXGA, 117PPI
VIEWING ANGLEG: 45/45/20/45 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
High Light:

WVGA TFT LCD Panel

,

VGA Lcd Display Panels

,

WVGA Industrial Lcd Panel

CMO N134B6-L01 Application Details

Basic Information :
Brand

N134B6-L01Model
Type
a-Si TFT-LCD , LCM
Used For

13.4 inchScreen Size
Alias
CMO1317
Environment :
Storage Temp.
-20 ~ 60 °C
Operating Temp.
0 ~ 50 °C
RoHS
Vibratio

n



CMO N134B6-L01 Mechanical Details

Pixel Features :
Resolution
1366(RGB)×768, WXGA
Dot Pitch(mm)
0.072×0.217 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.217×0.217 (H×V) [117PPI]
Mechanical Size :
Active Area(mm)
296.422(H) × 166.656(V)
Bezel Area(mm)
300.27(H) × 170.36(V)
Outline Dim.(mm)
310.1(H) × 185(V)
Depth(mm)
4.9/5.2 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style
Wedge (PCBA Bent, T≥5.2mm)
Aspect Ratio
16:9 (H:V)
Orientation
Landscape type
Mounting :
Side mounting holes (8-M2) on left, right bezel
Other Spec :
Weight
315/330g (Typ./Max.)
Treatment
Antiglare, Hard coating (3H)



CMO N134B6-L01 Optical Details

Basic Information :
Luminance(cd/m²)
220 (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Viewing Angle
45/45/20/45 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
6 o'clock
Response(ms)
2/6 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
262K (6-bit)
Color Temperature
6485K
White Uniformity
1.25 (Max.)(5 points)
1931 Color Gamlt :
NTSC Ratio
46%
sRGB
64% coverage
Adobe RGB
48% coverage
DCI-P3
48% coverage
Rec.2020
34% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



CMO N134B6-L01 Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
260/280mA (Typ./Max.)
Signal Type :
LVDS (1 ch, 6-bit)
Logic Voltage
-
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
I-PEX
20455-040E-12
0.5 mm
40 pins
1 pcs
LVDS-40P1C6B-060B



CMO N134B6-L01 Backlight Details

Backlight Features :
Type
WLED
Quantity
4 strings
Position
Edge light type
Replacement
-
Shape
4 strings
Life Time
15K(Min.) (Hours)
Lamp Electrical :
Voltage Supply
28/32/35V (Min./Typ./Max.)
Current Supply
20±1mA
Consumption
2.128/2.56/2.94W (Min./Typ./Max.)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
6.0/12.0/20.0V (Min./Typ./Max.)
Current Supply
209/251/288mA (Min./Typ./Max.)



CMO N134B6-L01 Packing Details

Package Box : Quantity Weight Box Size
20 pcs / box 10.5 Kgs 435×350×320 mm (L×W×H)



  FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
