N133HSE-EA3 Innolux 13.3" 1920(RGB)×1080 350 cd/m² INDUSTRIAL LCD DISPLAY

N133HSE-EA3 Innolux 13.3" 1920(RGB)×1080 350 cd/m² INDUSTRIAL LCD DISPLAY

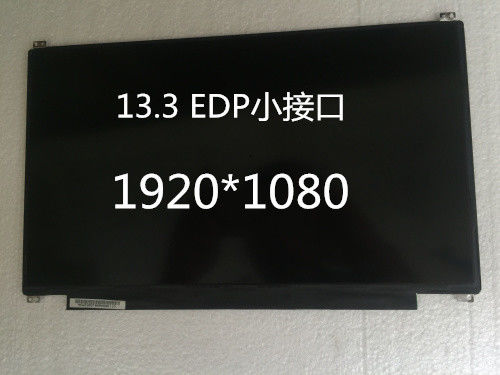

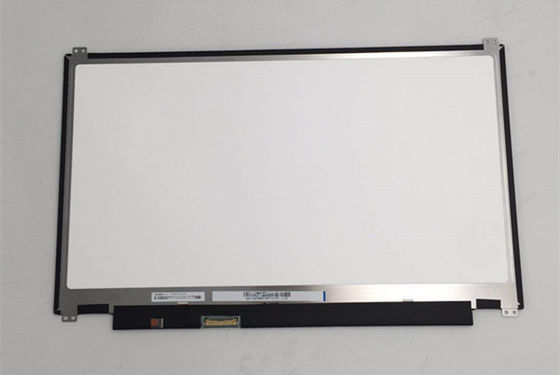

N133HSE-EA3 Innolux 13.3" 1920(RGB)×1080 350 cd/m² INDUSTRIAL LCD DISPLAY N133HSE-EA3 Innolux 13.3" 1920(RGB)×1080 350 cd/m² INDUSTRIAL LCD DISPLAY N133HSE-EA3 Innolux 13.3" 1920(RGB)×1080 350 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  N133HSE-EA3 Innolux 13.3" 1920(RGB)×1080 350 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: INNOLUX
Certification: ISO9001
Model Number: N133HSE-EA3
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 500PCS
Contact Now

N133HSE-EA3 Innolux 13.3" 1920(RGB)×1080 350 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: N133HSE-EA3 BRAND: INNOLUX
SIZE: 13.3 Inch BRIGHTNESS: 350CD/M2
Lamp Type: WLED RESOLUTION: 1920(RGB)×1080 (FHD) 166PPI
VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10) TEMPERATURE RANGE: Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
High Light:

WVGA TFT LCD Panel

,

VGA Lcd Display Panels

,

WVGA Industrial Lcd Panel

Innolux N133HSE-EA3 Application Details

Basic Detail :
Manufacturer

N133HSE-EA3Model Name
Panel Type
a-Si TFT-LCD , LCM
Another Name
CMN1361
Panel Size
13.3 inch
Designed For
Maximum Ratings :
OP Temperature
0 ~ 50 °C
ST Temperature
-20 ~ 60 °C



Innolux N133HSE-EA3 Optical Details

Basic Detail :
Luminance
350 cd/m² (Typ.)
Contrast Ratio
700:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
14/11 (Typ.)(Tr/Td) ms
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Operating Mode
AAS, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
16.7M (8-bit)
Color Temperature
6485K
White Variation
1.25/1.43 (Typ./Max.)(5 points)
1931 Color Gamlt :
NTSC Ratio
71%
sRGB
95% coverage
Adobe RGB
74% coverage
DCI-P3
74% coverage
Rec.2020
53% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Innolux N133HSE-EA3 Mechanical Details

Pixel Features :
Number of Pixel
1920(RGB)×1080, FHD
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.051×0.153 mm
Pixel Pitch(W×H)
0.153×0.153 mm [166PPI]
Physical Size :
Active Viewing
293.76(W)×165.24(H) mm
Overall Dim.
305.35(W)×193.77(H) mm
Bezel Opening
-
Overall Depth
2.85/3.0 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
16:9
Shape Style
Slim (PCBA Flat, T≤3.2mm)
Fixation :
Face mounting holes (8 pcs) on up, down slugs
Other Detail :
Mass
245/260g (Typ./Max.)
Surface
Antiglare, Hard coating (3H)





Innolux N133HSE-EA3 Interface Detail

Signal Electrical :
Input Current
270/290mA (Typ./Max.)
Input Voltage
3.3V (Typ.)
Consumption
0.96W (Max.)
Signal Interface
eDP (2 Lanes)
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
I-PEX
20455-030E-12
0.5 mm
30 pins
1 pcs
EDP-30P2L-020A



Innolux N133HSE-EA3 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
-
Position
Edge light type
Exchange
-
Lamp Shape
-
Lamp Life
15K(Min.) (Hours)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Input Voltage
5.0/12.0/21.0V (Min./Typ./Max.)
Input Current
267/355/350mA (Min./Typ./Max.)
Consumption
4.2W (Max.)



Innolux N133HSE-EA3 Packing Details

Package Box : Amount Size (L×W×H) Weight
40 pcs / box - 540×450×320 mm



  FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
