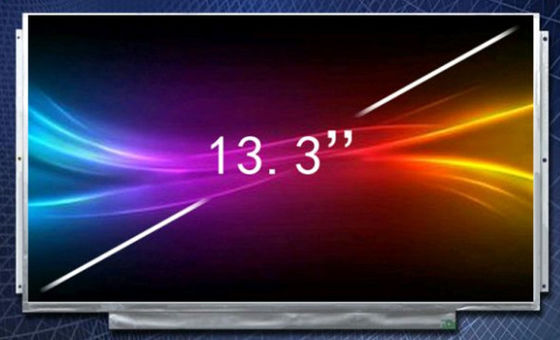

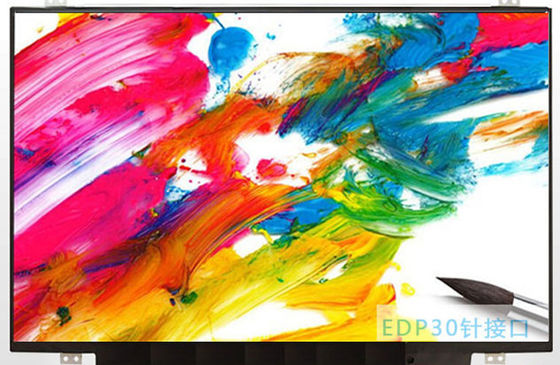

Product Details:
|
| MODEL NUMBER: | N133HCN-EA1 | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 13.3 Inch | BRIGHTNESS: | 250CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×1080 [FHD] 166PPI |
| VIEWING ANGLEG: | 85/85/85/85 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | WVGA TFT LCD Panel,VGA Lcd Display Panels,WVGA Industrial Lcd Panel |
||
| Basic Info : | |
|---|---|
| Reliability : |
| Pixel Features : | |
|---|---|
| Mechanical Size : | |
| Outline Features : | |
| Touch Screen : | |
| Holes & Brackets : | |
| Other Features : |
| Basic Information : | Brightness | 250 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Optical Mode | AAS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 14/11 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity |
1.25/1.54 (Max.)(5/13 points)
|
|
| 1931 Color Gamlt : | NTSC Ratio | 47% | sRGB | 66% coverage |
| Adobe RGB | 50% coverage | DCI-P3 | 49% coverage | |
| Rec.2020 | 35% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 15K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | - | Position | Edge light type | |
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | With LED Driver |
| Driver Electrical : | Voltage Input | 5.0/12.0/21.0V (Min./Typ./Max.) | Current Input | 190/219/232mA (Min./Typ./Max.) | ||
| Consumption | 2.78W (Max.) | |||||
| Signal Systerm : | eDP (2 Lanes), eDP1.2 | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 210/225mA (Typ./Max.) | ||
| Consumption | 0.8W (Max.) | |||||
| Interface Features : | Type | Connector | Position | |||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| I-PEX | 20455-040E-76 | 0.5 mm | 40 pins | 1 pcs | ||
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 40 pcs / box | - | 540×450×320 mm |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
