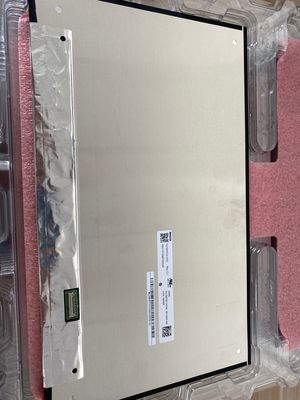

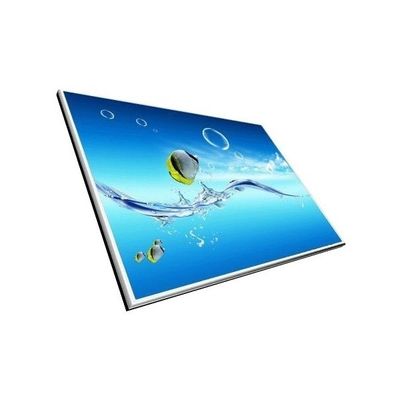

N133HCG-G52 Innolux 13.3" 1920(RGB)×1080 500 cd/m² INDUSTRIAL LCD DISPLAY

N133HCG-G52 Innolux 13.3" 1920(RGB)×1080 500 cd/m² INDUSTRIAL LCD DISPLAY
N133HCG-G52 Innolux 13.3" 1920(RGB)×1080 500 cd/m² INDUSTRIAL LCD DISPLAY N133HCG-G52 Innolux 13.3" 1920(RGB)×1080 500 cd/m² INDUSTRIAL LCD DISPLAY N133HCG-G52 Innolux 13.3" 1920(RGB)×1080 500 cd/m² INDUSTRIAL LCD DISPLAY N133HCG-G52 Innolux 13.3" 1920(RGB)×1080 500 cd/m² INDUSTRIAL LCD DISPLAY N133HCG-G52 Innolux 13.3" 1920(RGB)×1080 500 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  N133HCG-G52 Innolux 13.3" 1920(RGB)×1080 500 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: INNOLUX
Certification: ISO9001
Model Number: N133HCG-G52
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 500PCS
Contact Now

N133HCG-G52 Innolux 13.3" 1920(RGB)×1080 500 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: N133HCG-G52 BRAND: INNOLUX
SIZE: 13.3 Inch BRIGHTNESS: 500CD/M2
Lamp Type: WLED RESOLUTION: 1920(RGB)×1080, FHD, 166PPI
VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10 TEMPERATURE RANGE: Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
Highlight:

WVGA TFT LCD Panel

,

VGA Lcd Display Panels

,

WVGA Industrial Lcd Panel

Innolux N133HCG-G52 Application Details

Basic Information :
Brand

N133HCG-G52Model
Type
a-Si TFT-LCD , LCM
Used For

13.3 inchScreen Size
Alias
CMN1381
Environment :
Storage Temp.
-20 ~ 60 °C
Operating Temp.
0 ~ 50 °C
RoHS

1.5G (14.7 m/s²)Vibration



Innolux N133HCG-G52 Mechanical Details

Pixel Features :
Resolution
1920(RGB)×1080, FHD
Dot Pitch(mm)
0.051×0.153 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.153×0.153 (H×V) [166PPI]
Mechanical Size :
Active Area(mm)
293.76(H) × 165.24(V)
Bezel Area(mm)
-
Outline Dim.(mm)
299.46(H) × 176.94(V)
Depth(mm)
1.85/4.0 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style
Slim (PCBA Bent, T≤3.0mm)
Aspect Ratio
16:9 (H:V)
Orientation
Landscape type
Mounting :
Without
Other Spec :
Weight
156/165g (Typ./Max.)
Treatment
Glare (Haze 0%), Hard coating (3H)



Innolux N133HCG-G52 Optical Details

Basic Information :
Luminance(cd/m²)
500 (Typ.)
Contrast Ratio
1500:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Display Mode
AAS, Normally Black, Transmissive
Best View on
1 o'clock
Response(ms)
15/14 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
262K (6-bit)
Color Temperature
6485K
White Uniformity
1.25/1.60 (Max.)(5/13 points)
1931 Color Gamlt :
NTSC Ratio
71%
sRGB
100% coverage
Adobe RGB
74% coverage
DCI-P3
74% coverage
Rec.2020
53% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Innolux N133HCG-G52 Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
454/484mA (Typ./Max.)
Consumption
1.6W (Max.)
Signal Type :
eDP (4 Lanes)
Logic Voltage
-
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
I-PEX
20682-030E-02
0.4 mm
30 pins
1 pcs
EDP-30P2L-020V



Innolux N133HCG-G52 Backlight Details

Backlight Features :
Type
WLED
Quantity
-
Position
Edge light type
Replacement
-
Shape
-
Life Time
15K(Min.) (Hours)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
5.0/12.0/21.0V (Min./Typ./Max.)
Current Supply
383/400mA (Typ./Max.)
Consumption
4.8W (Max.)





Innolux N133HCG-G52 Packing Details

Package Box : Quantity Weight Box Size
40 pcs / box - 540×450×320 mm (L×W×H)



  FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.





N133HCG-G52 Innolux 13.3" 1920(RGB)×1080 500 cd/m² INDUSTRIAL LCD DISPLAY 0
