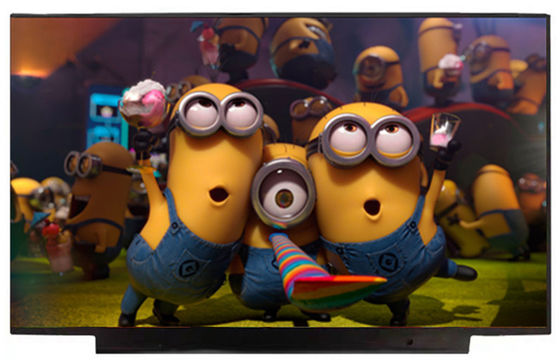

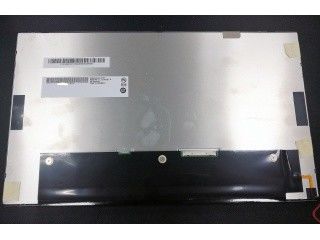

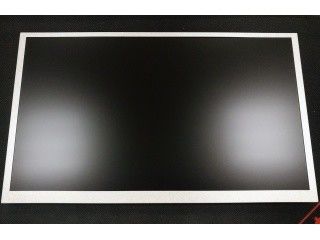

Product Details:
|
| MODEL NUMBER: | N133HCE-GT3 | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 13.3 Inch | BRIGHTNESS: | 300CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×1080, FHD, 166PPI |
| VIEWING ANGLEG: | 85/85/85/85 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| High Light: | WVGA TFT LCD Panel,VGA Lcd Display Panels,WVGA Industrial Lcd Panel |
||
| Basic Information : | |
|---|---|
| Environment : |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 300 (Typ.) | 85/85/85/85 (Typ.)(CR≥10) | 16/14 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | AAS, Normally Black, Transmissive | 1500 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 71% | 100% | 74% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 74% | 53% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.25/1.54 (Max.)(5/13 points) | ||
| Panel Size : | 13.3" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1920(RGB)×1080 [FHD] | RGB Vertical Stripe | 0.153×0.153 [166PPI] | 0.051×0.153 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 293.76(H) × 165.24(V) | - | 298.76(H) × 176.24(V) | 1.95/4.1 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | Slim (PCBA Bent, T≤3.0mm) | |
| Mounting : | Without | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 190g (Max.) | - | Antiglare, Hard coating (3H) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 15K(Min.) | - | |
| Interface Features : | Position | Backlight Driver | Type | |||
| - | With LED Driver | Included in panel signal interface | ||||
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 5.0/12.0/21.0V (Min./Typ./Max.) | 105/129mA (Min./Typ./Max.) | 1.55W (Max.) | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 124/133mA (Max.) | 0.44W (Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| eDP (2 Lanes), eDP1.3 | Connector | |||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| I-PEX | 20682-030E-02 | 0.4 mm | 30 pins | 1 pcs | ||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 40 pcs / box | - | 540×450×320 mm (L×W×H) |
