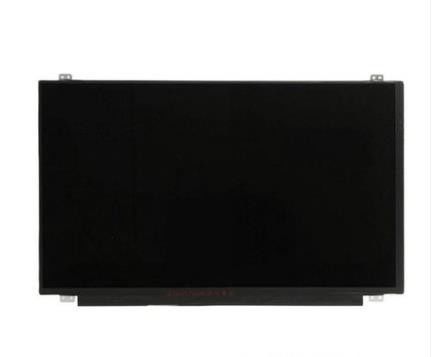

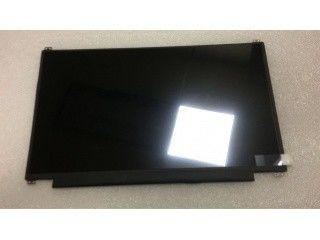

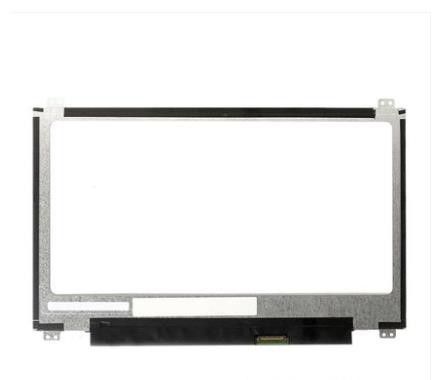

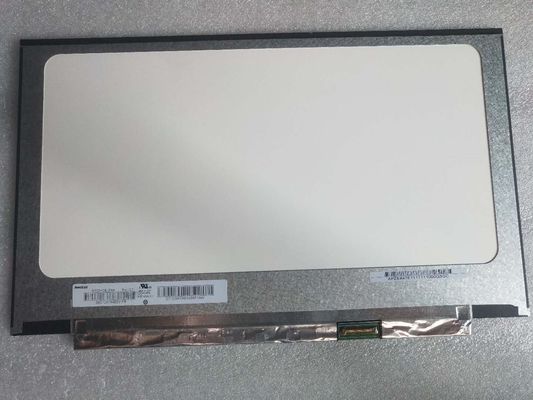

Product Details:
|

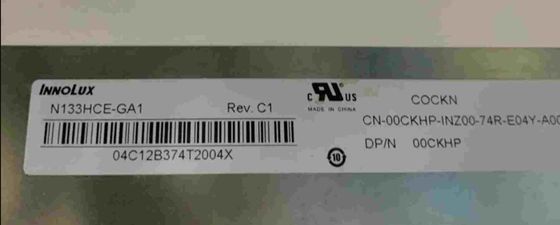

| MODEL NUMBER: | N133HCE-GA1 | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 13.3 Inch | BRIGHTNESS: | 350CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×1080, FHD, 166PPI |
| VIEWING ANGLEG: | 85/85/85/85 (Typ.)(CR≥10 | TEMPERATURE RANGE: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| High Light: | NTSC Lcd Video Panel,Antiglare NEC TFT Display,Capacitive TFT Touch Panel |
||
| Basic Detail : | Manufacturer | Model Name | N133HCE-GA1 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | CMN1371 | |
| Panel Size | 13.3 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Basic Information : | Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 14/11 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | AAS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.54 (Max.)(5/13 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 95% coverage |
| Adobe RGB | 73% coverage | DCI-P3 | 74% coverage | |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1920(RGB)×1080 [FHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.051×0.153 mm | Pixel Pitch(W×H) | 0.153×0.153 mm [166PPI] | |
| Physical Size : | Active Viewing | 293.76(W)×165.24(H) mm | Overall Dim. | 305.35(W)×193.45(H) mm |
| Bezel Opening | - | Overall Depth | 2.7/3.09 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | Slim (PCBA Flat, T≤3.2mm) | |
| Fixation : | Face mounting holes (8 pcs) on up, down slugs | |||
| Other Detail : | Mass | 245/260g (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
| Signal Electrical : | Input Current | 235/250mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.88W (Max.) | Signal Interface | eDP (2 Lanes) | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| I-PEX | 20455-030E-12 | 1 pcs | 0.5 mm | 30 pins | EDP-30P2L-020A | |
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 15K(Min.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 221/282/297mA (Min./Typ./Max.) | Input Voltage | 5.0/12.0/21.0V (Min./Typ./Max.) | ||
| Consumption | 3.60W (Max.) | |||||
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 40 pcs / box | - | - |
