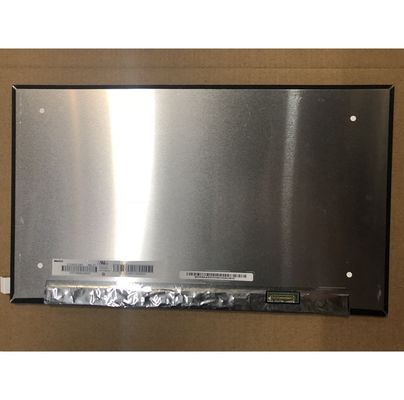

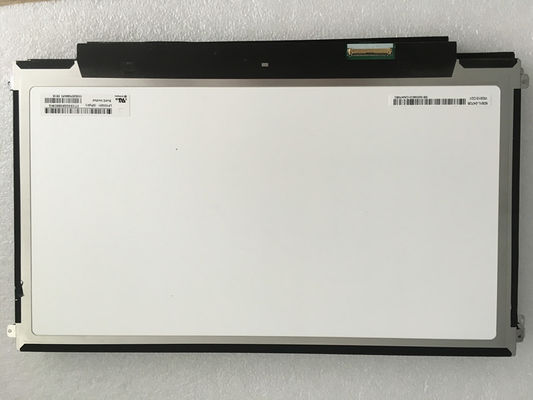

Product Details:
|
| MODEL NUMBER: | N133HCE-G62 | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 13.3 Inch | BRIGHTNESS: | 400 Cd/m² (Typ.) |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×1080 (FHD) 166PPI |
| VIEWING ANGLEG: | 85/85/85/85 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Highlight: | NTSC Lcd Video Panel,Antiglare NEC TFT Display,Capacitive TFT Touch Panel |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| N133HCE-G62 | a-Si TFT-LCD , LCM | CMN1380 | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Screen Size : | 13.3" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1920(RGB)×1080, FHD | RGB Vertical Stripe | 0.051×0.153 mm | 0.153×0.153 mm [166PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 293.76×165.24 mm | - | 299.46×176.94 mm | 1.85/4.0 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | Slim (PCBA Bent, T≤3.0mm) | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 170g (Max.) | - | Glare (Haze 0%), Hard coating (3H) | ||
| Holes & Brackets : | Without | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | AAS, Normally Black, Transmissive | 800:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 85/85/85/85 (Typ.)(CR≥10) | 14/11 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 71% | 100% | 74% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 74% | 53% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.25/1.54 (Max.)(5/13 points) | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 15K(Min.) | - | - | - | |
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| With LED Driver | Included in panel signal interface | - | ||||
| WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 5.0/12.0/21.0V (Min./Typ./Max.) | 218/264/277mA (Min./Typ./Max.) | 3.35W (Max.) | ||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | - | 0.8W (Max.) | ||||

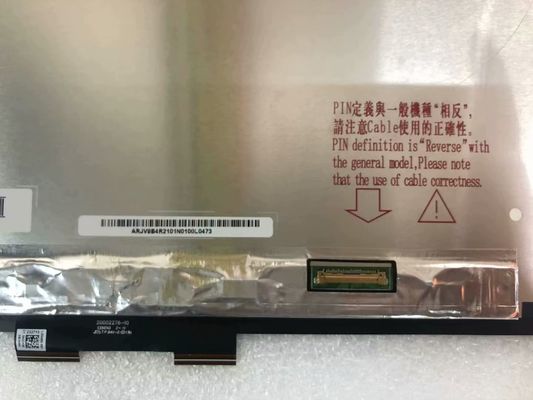

| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| eDP (2 Lanes) | Connector | |||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| I-PEX | 20455-030E-76 | 1 pcs | 30 pins | 0.5 mm | EDP-30P2L-020A | |
| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 40 pcs / box | - | 540×450×320 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
