Product Details:
|

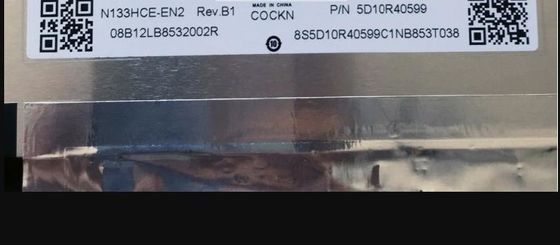

| MODEL NUMBER: | N133HCE-EN2 | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 13.3 Inch | BRIGHTNESS: | 300CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×1080, FHD, 166PPI |
| VIEWING ANGLEG: | 85/85/85/85 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Perating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| High Light: | NTSC Lcd Video Panel,Antiglare NEC TFT Display,Capacitive TFT Touch Panel |
||
| Basic Detail : | |
|---|---|
| Maximum Ratings : |
| Pixel Features : | Resolution | 1920(RGB)×1080, FHD | Dot Pitch(mm) | 0.051×0.153 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.153×0.153 (H×V) [166PPI] | |
| Mechanical Size : | Active Area(mm) | 293.76(H) × 165.24(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 300.26(H) × 177.62(V) | Depth(mm) | 2.25/2.5 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Without | |||
| Other Spec : | Weight | 197.5/210g (Typ./Max.) | Treatment | Antiglare, Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 300 (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Display Mode | AAS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 14/11 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.54 (Max.)(5/13 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 71% | sRGB | 100% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 74% coverage | |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | - | ||
|---|---|---|---|---|---|---|
| Consumption | 0.63W (Max.) | |||||
| Signal Type : | eDP (2 Lanes) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| I-PEX | 20455-030E-76 | 1 pcs | 30 pins | 0.5 mm | EDP-30P2L-020A | |
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 15K(Min.) (Hours) | |
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 5.0/12.0/21.0V (Min./Typ./Max.) | Current Supply | 185/221/231mA (Typ./Max.) | ||
| Consumption | 2.77W (Max.) | |||||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 40 pcs / box | - | 540×450×320 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
