Product Details:
|

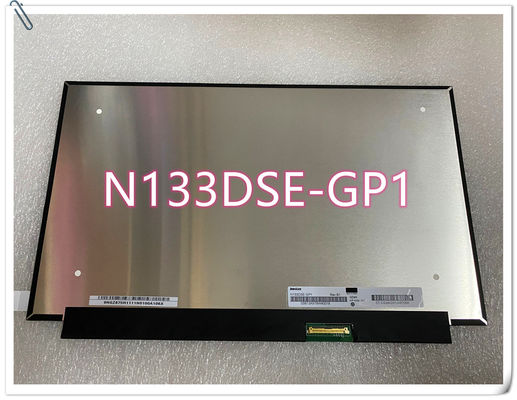

| MODEL NUMBER: | N133DSE-GP1 | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 13.3 Inch | BRIGHTNESS: | 340CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 3840(RGB)×2160 (UHD) 332PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| High Light: | NTSC Lcd Video Panel,Antiglare NEC TFT Display,Capacitive TFT Touch Panel |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| N133DSE-GP1 | a-Si TFT-LCD , LCM | CMN1373 | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C | - |
| Panel Size : | 13.3 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 3840(RGB)×2160, UHD | RGB Vertical Stripe | 0.0255×0.0765 mm | 0.0765×0.0765 mm [332PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 293.76×165.24 mm | - | 299.46×186.67 mm | 1.86/2.0 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape type | Slim (PCBA Flat, T≤3.2mm) | |
| Fixation : | Without | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 151/160g (Typ./Max.) | Glare (Haze 0%), Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 340 cd/m² (Typ.) | AAS, Normally Black, Transmissive | 1500:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 89/89/89/89 (Typ.)(CR≥10) | Symmetry | 15/14 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 71% | 100% | 74% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 74% | 53% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.25/1.60 (Max.)(5/13 points) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 470/515mA (Typ./Max.) | 3.3V (Typ.) | 1.7W (Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| Connector | eDP (4 Lanes) | |||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| I-PEX | 20455-040E-12 | 1 pcs | 0.5 mm | 40 pins | ||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 15K(Min.) | - | |
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in panel signal interface | With LED Driver | ||||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| 210/243/250mA (Min./Typ./Max.) | 5.0/12.0/21.0V (Min./Typ./Max.) | 3.0W (Max.) | ||||
| Package Carton : | Amount | Weight | Carton Size |
|---|---|---|---|
| 40 pcs / box | - | 540×450×320 mm (L×W×H) |
