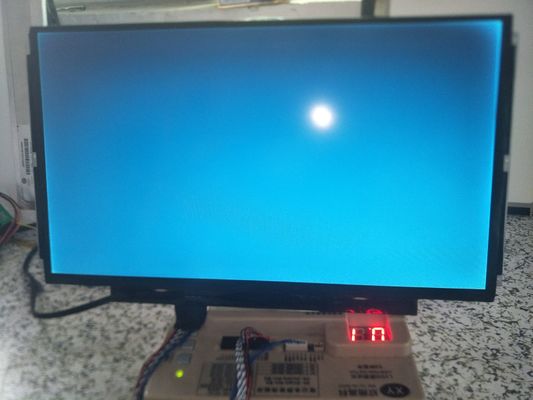

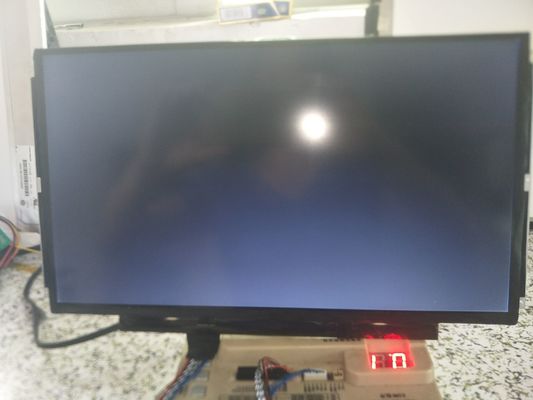

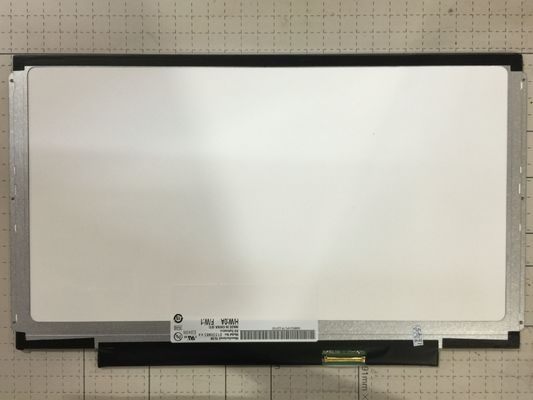

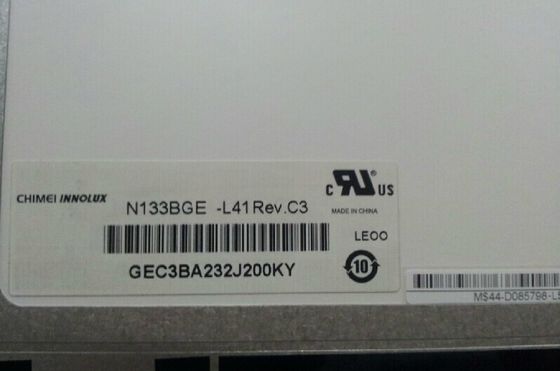

N133BGE-L41 Innolux 13.3" 1366(RGB)×768 220 cd/m² INDUSTRIAL LCD DISPLAY

N133BGE-L41 Innolux 13.3" 1366(RGB)×768 220 cd/m² INDUSTRIAL LCD DISPLAY
N133BGE-L41 Innolux 13.3" 1366(RGB)×768 220 cd/m² INDUSTRIAL LCD DISPLAY N133BGE-L41 Innolux 13.3" 1366(RGB)×768 220 cd/m² INDUSTRIAL LCD DISPLAY N133BGE-L41 Innolux 13.3" 1366(RGB)×768 220 cd/m² INDUSTRIAL LCD DISPLAY N133BGE-L41 Innolux 13.3" 1366(RGB)×768 220 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  N133BGE-L41 Innolux 13.3" 1366(RGB)×768 220 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: INNOLUX
Certification: ISO9001
Model Number: N133BGE-L41
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 100PCS
Contact Now

N133BGE-L41 Innolux 13.3" 1366(RGB)×768 220 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: N133BGE-L41 BRAND: INNOLUX
SIZE: 13.3 Inch BRIGHTNESS: 220CD/M2
Lamp Type: WLED RESOLUTION: 1366(RGB)×768, WXGA, 118PPI
VIEWING ANGLEG: 45/45/20/45 (Typ.)(CR≥10) TEMPERATURE RANGE: Perating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
Highlight:

NTSC Lcd Video Panel

,

Antiglare NEC TFT Display

,

Capacitive TFT Touch Panel

Innolux N133BGE-L41 Application Details

Basic Detail :
Manufacturer

N133BGE-L41 9 CompatibleModel Name
Panel Type
a-Si TFT-LCD , LCM
Another Name
CMO1333
Panel Size
13.3 inch
Designed For
Maximum Ratings :
OP Temperature
0 ~ 50 °C
ST Temperature
-20 ~ 60 °C



Innolux N133BGE-L41 Optical Details

Basic Detail :
Luminance
220 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Good View at
6 o'clock
Response Speed
8/8 (Typ.)(Tr/Td) ms
Viewing Angle
45/45/20/45 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
262K (6-bit)
Color Temperature
6485K
White Variation
1.25/1.43 (Typ./Max.)(5 points)
1931 Color Gamlt :
NTSC Ratio
49%
sRGB
69% coverage
Adobe RGB
52% coverage
DCI-P3
51% coverage
Rec.2020
37% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Innolux N133BGE-L41 Mechanical Details

Pixel Features :
Number of Pixel
1366(RGB)×768, WXGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.0716×0.2148 mm
Pixel Pitch(W×H)
0.2148×0.2148 mm [118PPI]
Physical Size :
Active Viewing
293.42(W)×164.97(H) mm
Overall Dim.
314.1(W)×188.75(H) mm
Bezel Opening
296.82(W)×168.37(H) mm
Overall Depth
3.3/3.6 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
16:9
Shape Style
Flat (PCBA Flat, T3.4~4.0mm)
Fixation :
Face mounting holes (6 pcs) on left, right brackets
Other Detail :
Mass
280/290g (Typ./Max.)
Surface
Glare (Haze 0%), Hard coating (3H)



Innolux N133BGE-L41 Interface Detail

Signal Electrical :
Input Current
200/230mA (Typ./Max.)
Input Voltage
3.3V (Typ.)
Consumption
0.6W (Max.)
Signal Interface
LVDS (1 ch, 6-bit)
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
I-PEX
20455-040E-12
0.5 mm
40 pins
1 pcs
LVDS-40P1C6B-060J



Innolux N133BGE-L41 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
10S3P
Position
Edge light type
Exchange
-
Lamp Shape
3 strings
Lamp Life
15K(Min.) (Hours)
Lamp Electrical :
Input Voltage
28.0±1.0V
Input Current
20±1mA
Consumption
1.32/2.00W (Typ./Max.)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Input Voltage
5.0/12.0/21.0V (Min./Typ./Max.)
Input Current
152/189/213mA (Min./Typ./Max.)
Consumption
2.4W (Max.)



Innolux N133BGE-L41 Packing Details

Package Box : Amount Size (L×W×H) Weight
40 pcs / box 10.93 Kgs 540×450×320 mm



  FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
