KG047QVLAA-G020 Kyocera 4.7INCH LCM 320×240RGB 300NITS WLED INDUSTRIAL LCD DISPLAY

KG047QVLAA-G020 Kyocera 4.7INCH LCM 320×240RGB 300NITS WLED INDUSTRIAL LCD DISPLAY

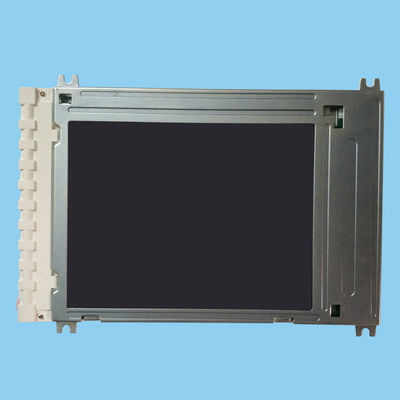

KG047QVLAA-G020 Kyocera 4.7INCH LCM 320×240RGB 300NITS WLED INDUSTRIAL LCD DISPLAY KG047QVLAA-G020 Kyocera 4.7INCH LCM 320×240RGB 300NITS WLED INDUSTRIAL LCD DISPLAY KG047QVLAA-G020 Kyocera 4.7INCH LCM 320×240RGB 300NITS WLED INDUSTRIAL LCD DISPLAY

Large Image :  KG047QVLAA-G020 Kyocera 4.7INCH LCM 320×240RGB 300NITS WLED INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: Kyocera
Certification: ISO9001
Model Number: KG047QVLAA-G020
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2day
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 300PCS
Contact Now

KG047QVLAA-G020 Kyocera 4.7INCH LCM 320×240RGB 300NITS WLED INDUSTRIAL LCD DISPLAY

Description
BRAND: Kyocera MODEL NUMBER: KG047QVLAA-G020
SIZE: 4.7INCH RESOLUTION: 320×240RGB
BRIGHTNESS: 300 Cd/m² (Typ.) Interface Type: Parallel Data (4-bit) 20 Pins Connector
Light Source: WLED , 40K Hours , W/O Driver Environment: Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
High Light:

WLED Industrial TFT Display

,

Hard Coating Industrial TFT Display

,

Monochrome Industrial TFT Display

Kyocera KG047QVLAA-G020 Application Details

Basic Info :
Panel Brand

KG047QVLAA-G020Panel Model
Diagonal Size
4.7"
Application

STN-LCD , LCMPanel Type
Model Alias
-
Reliability :
Operating Temp.
-20 ~ 70 °C
Storage Temp.
-30 ~ 80 °C
RoHS State

-Vibration Rating



Kyocera KG047QVLAA-G020 Mechanical Details

Pixel Features :
Pixel Format
320×240, QVGA
Dot Pitch
0.300×0.300 mm (H×V)
Configuration
Rectangle
Pixel Pitch
0.300×0.300 mm (H×V) [84PPI]
Mechanical Size :
Display Area
95.97×71.97 mm (H×V)
Bezel Area
100.6×76.6 mm (H×V)
Outline Dim.
122.4×90 mm (H×V)
Outline Depth
5.7/9.9 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style

Other Features :
Weight
90g (Typ.)
Surface
Glare (Haze 0%)



Kyocera KG047QVLAA-G020 Optical Details

Basic Information :
Brightness
300 cd/m² (Typ.)
Contrast Ratio
4:1 (Typ.) (Transmissive)
Viewing Angle
45/45/20/40 (Typ.)(CR≥2)
Optical Mode
STN, Blue mode (Negative), Transmissive
Viewing Direction
-
Response Time
380/120 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.340; Wy:0.350
Color Numbers
Monochrome
Color Temperature
5201K
Uniformity
-



Kyocera KG047QVLAA-G020 Electronics Details

Frame Frequency :
75Hz
Reverse Scan :
No
Driving Method :
Duty: 1/240



Kyocera KG047QVLAA-G020 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
-
Life Time
40K(Typ.) (Hours)
Replacement
-
Lamp Shape
-
Position
Edge light type
Lamp Electrical :
Voltage Input
23.7/27.2V (Typ./Max.)
Current Input
10.0mA (Typ.)
Interface Features :
Type
FPC
Position
-
Lamp Driver
No
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration


1.0 mm
4 pins
1 pcs
BLE-4PINS-ACCA



Kyocera KG047QVLAA-G020 Interface Detail

Signal Systerm :
Parallel Data (4-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3/5.0V (Typ.)(VDD)
Current Input
23/16mA (Typ.)(3.3V/5.0V)(IDD)
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
Kyocera Elco
08-6210-020-340-800+
0.5 mm
20 pins
1 pcs
PD-20P1C4B-010A



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

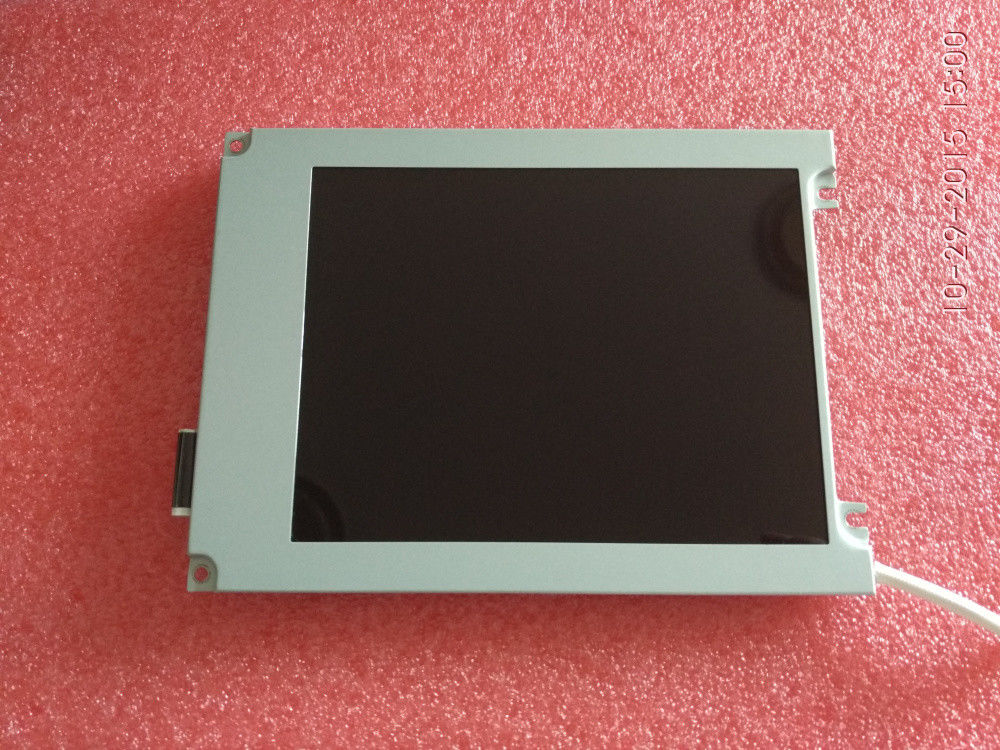

KG047QVLAA-G020 Kyocera 4.7INCH LCM 320×240RGB 300NITS WLED INDUSTRIAL LCD DISPLAY 0KG047QVLAA-G020 Kyocera 4.7INCH LCM 320×240RGB 300NITS WLED INDUSTRIAL LCD DISPLAY 1
