N133BGE-E31 Innolux 13.3" 1366(RGB)×768 200 cd/m² INDUSTRIAL LCD DISPLAY

N133BGE-E31 Innolux 13.3" 1366(RGB)×768 200 cd/m² INDUSTRIAL LCD DISPLAY

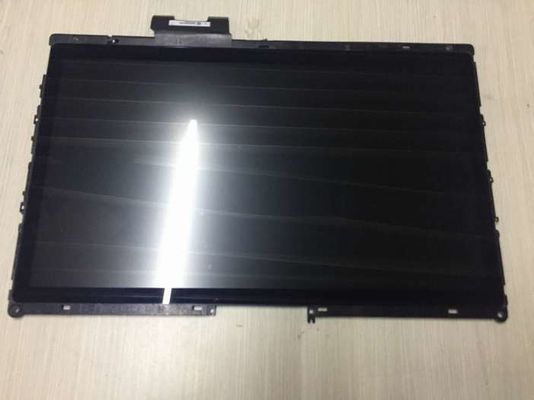

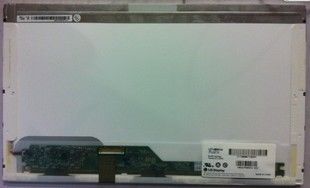

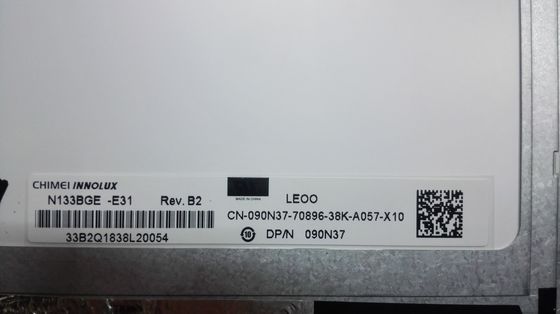

N133BGE-E31 Innolux 13.3" 1366(RGB)×768 200 cd/m² INDUSTRIAL LCD DISPLAY N133BGE-E31 Innolux 13.3" 1366(RGB)×768 200 cd/m² INDUSTRIAL LCD DISPLAY N133BGE-E31 Innolux 13.3" 1366(RGB)×768 200 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  N133BGE-E31 Innolux 13.3" 1366(RGB)×768 200 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: INNOLUX
Certification: ISO9001
Model Number: N133BGE-E31
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 100PCS
Contact Now

N133BGE-E31 Innolux 13.3" 1366(RGB)×768 200 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: N133BGE-E31 BRAND: INNOLUX
SIZE: 13.3 Inch BRIGHTNESS: 200CD/M2
Lamp Type: WLED RESOLUTION: 1366(RGB)×768 [WXGA] 118PPI
VIEWING ANGLEG: 45/45/20/45 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Highlight:

NTSC Lcd Video Panel

,

Antiglare NEC TFT Display

,

Capacitive TFT Touch Panel

Innolux N133BGE-E31 Application Details

Basic Information :
Brand

N133BGE-E31Model
Type
a-Si TFT-LCD , LCM
Used For

13.3 inchScreen Size
Alias
CMN1352
Environment :
Storage Temp.
-20 ~ 60 °C
Operating Temp.
0 ~ 50 °C



Innolux N133BGE-E31 Mechanical Details

Pixel Features :
Resolution
1366(RGB)×768, WXGA
Dot Pitch(mm)
0.0716×0.2148 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.2148×0.2148 (H×V) [118PPI]
Mechanical Size :
Active Area(mm)
293.42(H) × 164.97(V)
Bezel Area(mm)
296.82(H) × 168.37(V)
Outline Dim.(mm)
314.1(H) × 188.75(V)
Depth(mm)
3.3/3.6 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style
Flat (PCBA Flat, T3.4~4.0mm)
Aspect Ratio
16:9 (H:V)
Orientation
Landscape type
Mounting :
Face mounting holes (6pcs) on left, right brackets
Other Spec :
Weight
265/280g (Typ./Max.)
Treatment
Antiglare, Hard coating (3H)



Innolux N133BGE-E31 Optical Details

Basic Information :
Luminance(cd/m²)
200 (Typ.)
Contrast Ratio
400:1 (Typ.) (Transmissive)
Viewing Angle
45/45/20/45 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
6 o'clock
Response(ms)
8/8 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
262K (6-bit)
Color Temperature
6485K
White Uniformity
1.25/1.43 (Typ./Max.)(5 points)
1931 Color Gamlt :
NTSC Ratio
49%
sRGB
69% coverage
Adobe RGB
52% coverage
DCI-P3
51% coverage
Rec.2020
37% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Innolux N133BGE-E31 Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
230/255mA (Typ./Max.)
Consumption
0.85W (Max.)
Signal Type :
eDP (1 Lane)
Logic Voltage
-
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
I-PEX
20455-030E-12
0.5 mm
30 pins
1 pcs
EDP-30P1L-030J



Innolux N133BGE-E31 Backlight Details

Backlight Features :
Type
WLED
Quantity
9S3P
Position
Edge light type
Replacement
-
Shape
3 strings
Life Time
15K(Min.) (Hours)
Lamp Electrical :
Voltage Supply
25.2±0.9V
Current Supply
22mA (Typ.)
Consumption
1.74/1.86W (Typ./Max.)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
5.0/12.0/21.0V (Min./Typ./Max.)
Current Supply
139/167/181mA (Min./Typ./Max.)
Consumption
2.1W (Max.)



Innolux N133BGE-E31 Packing Details

Package Box : Quantity Weight Box Size
40 pcs / box - 540×450×275 mm (L×W×H)



 Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
