F-55157GNF-LW-ASN Kyocera 5.7INCH LCM 320×240RGB 150NITS WLED INDUSTRIAL LCD DISPLAY

F-55157GNF-LW-ASN Kyocera 5.7INCH LCM 320×240RGB 150NITS WLED INDUSTRIAL LCD DISPLAY

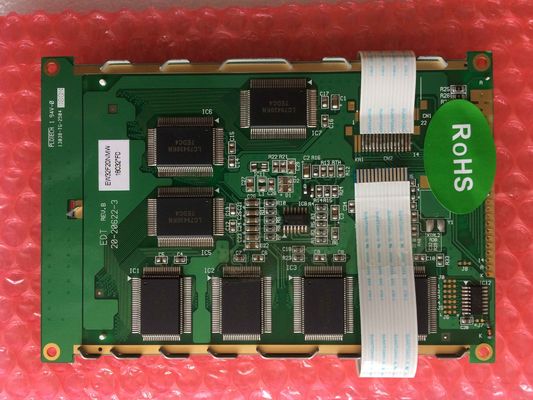

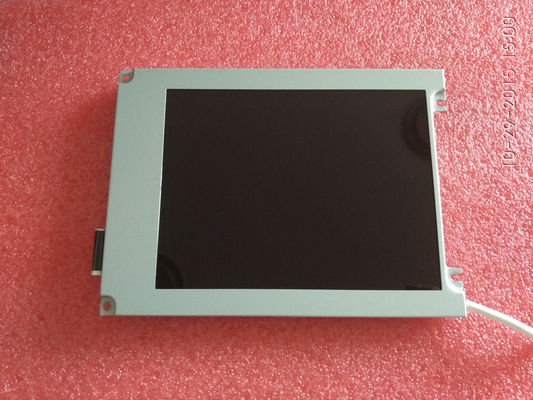

F-55157GNF-LW-ASN Kyocera 5.7INCH LCM 320×240RGB 150NITS WLED INDUSTRIAL LCD DISPLAY F-55157GNF-LW-ASN Kyocera 5.7INCH LCM 320×240RGB 150NITS WLED INDUSTRIAL LCD DISPLAY F-55157GNF-LW-ASN Kyocera 5.7INCH LCM 320×240RGB 150NITS WLED INDUSTRIAL LCD DISPLAY

Large Image :  F-55157GNF-LW-ASN Kyocera 5.7INCH LCM 320×240RGB 150NITS WLED INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: Kyocera
Certification: ISO9001
Model Number: F-55157GNF-LW-ASN
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2day
Payment Terms: TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability: 100PCS
Contact Now

F-55157GNF-LW-ASN Kyocera 5.7INCH LCM 320×240RGB 150NITS WLED INDUSTRIAL LCD DISPLAY

Description
BRAND: Kyocera MODEL NUMBER: F-55157GNF-LW-ASN
SIZE: 5.7INCH RESOLUTION: 320×240RGB
BRIGHTNESS: 150 (Typ.)(cd/m²) Screen Type: LCM , FSTN-LCD
Backlight: 3S3P WLED , No Driver Max. Ratings: Storage Temp.: -20 ~ 70 °C Operating Temp.: 0 ~ 60 °C
High Light:

WLED Industrial TFT Display

,

Hard Coating Industrial TFT Display

,

Monochrome Industrial TFT Display

OPTREX F-55157GNF-LW-ASN Application Details

Basic Info :
Panel Brand

F-55157GNF-LW-ASNPanel Model
Diagonal Size
5.7"
Application

FSTN-LCD , LCMPanel Type
Model Alias
-
Reliability :
Operating Temp.
0 ~ 60 °C
Storage Temp.
-20 ~ 70 °C
RoHS State

-Vibration Rating



OPTREX F-55157GNF-LW-ASN Mechanical Details

Pixel Features :
Pixel Format
320×240, QVGA
Dot Pitch
0.360×0.360 mm (H×V)
Configuration
Rectangle
Pixel Pitch
0.360×0.360 mm (H×V) [70PPI]
Mechanical Size :
Display Area
115.185×86.385 mm (H×V)
Bezel Area
120.0×90.0 mm (H×V)
Outline Dim.
160×109 mm (H×V)
Outline Depth
11.0 (Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style

Holes & Brackets :
Face mounting holes (4 pcs) on left, right slugs
Other Features :
Weight
265g (Max.)
Surface
-



OPTREX F-55157GNF-LW-ASN Optical Details

Basic Information :
Brightness
150 cd/m² (Typ.)
Contrast Ratio
15:1 (Typ.) (Transmissive)
Viewing Angle
40/44/25/35 (Typ.)(CR≥2)
Optical Mode
STN, Black/White mode, Transmissive
Viewing Direction
6 o'clock
Response Time
200/100 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
-
Color Numbers
Monochrome



OPTREX F-55157GNF-LW-ASN Electronics Details

Frame Frequency :
70Hz
Reverse Scan :
No



OPTREX F-55157GNF-LW-ASN Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
3S3P
Life Time
-
Replacement
-
Lamp Shape
3 strings
Position
Edge light type
Lamp Electrical :
Voltage Input
9.6V (Typ.)
Current Input
20/25mA (Typ./Max.)
Consumption
264mW (Max.)
Interface Features :
Type
Connector
Position
-
Lamp Driver
No
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
JST
SHLP-06V-S-B
1.0 mm
6 pins
1 pcs
BLE-6PINS-AAACCC



OPTREX F-55157GNF-LW-ASN Interface Detail

Signal Systerm :
Parallel Data (4-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
5.0V (Typ.)
Current Input
0.4/0.6mA (Typ./Max.)
Interface Features :
Type
FPC
Position
-
FPC Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration


1.25 mm
14 pins
1 pcs
