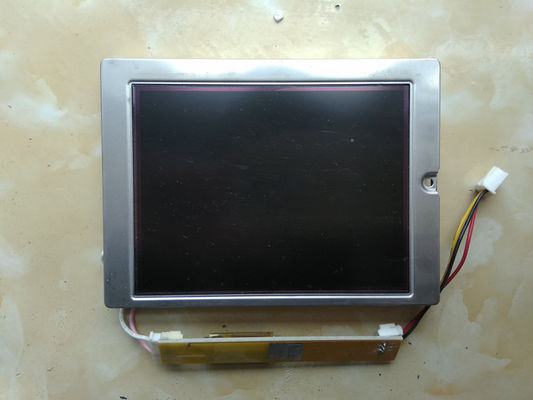

Product Details:
|
| BRAND: | Kyocera | MODEL NUMBER: | F-51477GNF-SLY-ALN |
|---|---|---|---|
| SIZE: | 4.7INCH | RESOLUTION: | 320×240RGB |
| BRIGHTNESS: | 150 Cd/m² (Typ.) | Signal Interface: | Parallel Data (4-bit) , 23 Pins FPC |
| Lamp Type: | YG-LED , Without Driver | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| High Light: | WLED Industrial TFT Display,Hard Coating Industrial TFT Display,Monochrome Industrial TFT Display |
||
| Basic Information : | Brand | Model | F-51477GNF-SLY-ALN | |
|---|---|---|---|---|
| Type | LCM FSTN-LCD | Used For | ||
| Screen Size | 4.7" | Alias | - | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| RoHS | Vibration | - |
| Pixel Features : | Resolution | 320×240, QVGA | Dot Pitch(mm) | 0.300×0.300 (H×V) |
|---|---|---|---|---|
| Pixel Format | Rectangle | Pixel Pitch(mm) | 0.300×0.300 (H×V) [84PPI] | |
| Mechanical Size : | Active Area(mm) | 95.97(H) × 71.97(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 129.4(H) × 94(V) | Depth(mm) | 6.0 (Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Other Spec : | Weight | 102g (Max.) | Treatment | - |
| Basic Information : | Luminance(cd/m²) | 150 (Typ.) | Contrast Ratio | 4:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | - | Display Mode | STN, Black/White (Positive), Transflective | |
| Best View on | 6 o'clock | Response(ms) | 360/280 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | - | Display Colors | Monochrome |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
| Frame Rate : | 70Hz |
|---|---|
| Reverse Scan : | No |
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 0.1/0.15mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Signal Type : | Parallel Data (4-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 23 pins | 0.5 mm | ||||
| Backlight Features: | Shape | - | Type | YG-LED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | - | |
| Lamp Electrical : | Voltage Supply | 4.4/5.2V (Typ./Max.) | Current Supply | 180mA (Typ.) | ||
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
