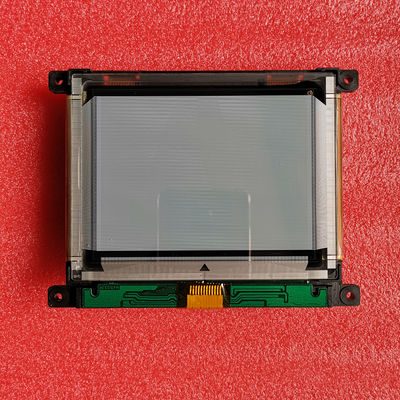

Product Details:
|
| BRAND: | Kyocera | MODEL NUMBER: | F-51477GNF-LW-AG |
|---|---|---|---|
| SIZE: | 4.7INCH | RESOLUTION: | 320×240RGB |
| BRIGHTNESS: | 280 Cd/m² (Typ.) | Signal Type: | Parallel Data (4-bit) , 14 Pins FPC |
| Backlight: | WLED , With LED Driver | Max. Ratings: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Highlight: | WLED Industrial TFT Display,Hard Coating Industrial TFT Display,Monochrome Industrial TFT Display |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| F-51477GNF-LW-AG | FSTN-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C | - |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 280 (Typ.) | - | 250/140 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 6 o'clock | STN, Black/White (Positive), Transflective | 20 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| - | Monochrome | - | |
| Performance : | 3D Tech | Sunlight Visibility | Reflectance |
| - | Sunlight Readable | - |
| Panel Size : | 4.7" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 320×240 [QVGA] | Rectangle | 0.300×0.300 [84PPI] | 0.300×0.300 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 95.97(H) × 71.97(V) | - | 129.4(H) × 94(V) | 8.8 (Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | ||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 110g (Max.) | - | - | ||
| Reverse Scan : | No |
|---|---|
| Vertical Frequency : | 70Hz |
| Driving Method : | Duty: 1/240 , Bias: 1/14 |
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | - | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 21.0V (Typ.) | 15mA (Typ.) | |||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | With LED Driver | Included in panel signal interface | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 5.0V (Typ.)(With LED Backlight) | 120/180mA (Typ./Max.) | - | ||||
| Interface Features : | Position | Signal | Type | |||
| - | Parallel Data (4-bit) | FPC | ||||
| FPC Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 14 pins | 1 pcs | |||||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
