Product Details:
|

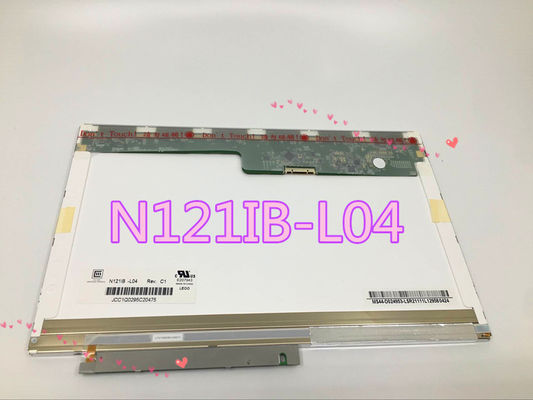

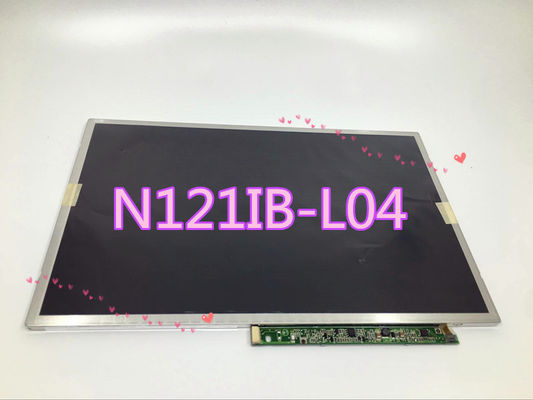

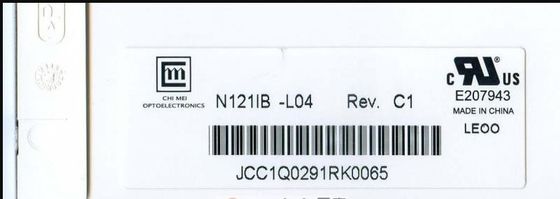

| MODEL NUMBER: | N121IB-L04 | BRAND: | CMO |
|---|---|---|---|
| SIZE: | 12.1 Inch | BRIGHTNESS: | 220CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1280(RGB)×800 [WXGA] 124PPI |
| VIEWING ANGLEG: | /45/20/45 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | NTSC Lcd Video Panel,Antiglare NEC TFT Display,Capacitive TFT Touch Panel |
||
| Basic Information : | Brand | Model | N121IB-L04 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 12.1" | Alias | CMO1230 | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| Pixel Features : | Resolution | 1280(RGB)×800, WXGA | Dot Pitch(mm) | 0.068×0.204 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.204×0.204 (H×V) [124PPI] | |
| Mechanical Size : | Active Area(mm) | 261.12(H) × 163.2(V) | Bezel Area(mm) | 263.67(H) × 165.75(V) |
| Outline Dim.(mm) | 275.8(H) × 189.6(V) | Depth(mm) | 4.9/5.2 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Wedge (PCBA Bent, T≥5.2mm) |
| Aspect Ratio | 16:10 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (4-M2) on left, right bezel | |||
| Other Spec : | Weight | 280/295g (Typ./Max.) | Treatment | Glare (Haze 0%), Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 220 (Typ.) | Contrast Ratio | 300:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 3/7 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.40 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 46% | sRGB | 63% coverage |
| Adobe RGB | 48% coverage | DCI-P3 | 47% coverage | |
| Rec.2020 | 34% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 330/360mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Signal Type : | LVDS (1 ch, 6-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| HRS | DF19KR-20P-1H | 1 pcs | 20 pins | 1.0 mm | LVDS-20P1C6B-180D | |
| Backlight Features: | Shape | 6 strings | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 7S6P | Life Time | 12K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 22.4/3.8V (Typ./Max.) | Current Supply | 17.5/20mA (Typ./Max.) | ||
| Consumption | 2.35/2.5W (Typ./Max.) | |||||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| ACES | 87213-0700 | 1 pcs | 7 pins | 1.0 mm | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 8.0/12.0/20.0V (Min./Typ./Max.) | Current Supply | - | ||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 20 pcs / box | 7.3 Kgs | 374×334×348 mm (L×W×H) |
