N121IB-L01 CMO 12.1" 1280(RGB)×800 220 cd/m² INDUSTRIAL LCD DISPLAY

N121IB-L01 CMO 12.1" 1280(RGB)×800 220 cd/m² INDUSTRIAL LCD DISPLAY
N121IB-L01 CMO 12.1" 1280(RGB)×800 220 cd/m² INDUSTRIAL LCD DISPLAY N121IB-L01 CMO 12.1" 1280(RGB)×800 220 cd/m² INDUSTRIAL LCD DISPLAY N121IB-L01 CMO 12.1" 1280(RGB)×800 220 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  N121IB-L01 CMO 12.1" 1280(RGB)×800 220 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: CMO
Certification: ISO9001
Model Number: N121IB-L01
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 100PCS
Contact Now

N121IB-L01 CMO 12.1" 1280(RGB)×800 220 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: N121IB-L01 BRAND: CMO
SIZE: 12.1INCH BRIGHTNESS: 220CD/M2
Lamp Type: WLED RESOLUTION: TEMPERATURE RANGE
VIEWING ANGLEG: 45/45/20/45 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
Highlight:

NTSC Lcd Video Panel

,

Antiglare NEC TFT Display

,

Capacitive TFT Touch Panel

CMO N121IB-L01 Application Details

Basic Info :
Panel Brand

N121IB-L01Panel Model
Diagonal Size
12.1"
Application

a-Si TFT-LCD , LCMPanel Type
Model Alias
CMO1227
Reliability :
Operating Temp.
0 ~ 50 °C
Storage Temp.
-20 ~ 60 °C
RoHS State

-Vibration Rating



CMO N121IB-L01 Mechanical Details

Pixel Features :
Pixel Format
1280(RGB)×800, WXGA
Dot Pitch
0.068×0.204 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.204×0.204 mm (H×V) [124PPI]
Mechanical Size :
Display Area
261.12×163.2 mm (H×V)
Bezel Area
263.67×165.75 mm (H×V)
Outline Dim.
275.8×179.5 mm (H×V)
Outline Depth
4.7/5.0 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:10 (H:V)
Shape Style
Wedge (PCBA Bent, T≥5.2mm)
Holes & Brackets :
Side mounting holes (4-M2) on left, right bezel
Other Features :
Weight
215/230g (Typ./Max.)
Surface
Antiglare, Hard coating (3H)



CMO N121IB-L01 Optical Details

Basic Information :
Brightness
220 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Viewing Angle
45/45/20/45 (Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
6 o'clock
Response Time
3/7 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
262K (6-bit)
Color Temperature
6485K
Uniformity
1.40 (Max.)(5 points)
1931 Color Gamlt :
NTSC Ratio
41%
sRGB
58% coverage
Adobe RGB
43% coverage
DCI-P3
43% coverage
Rec.2020
31% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



CMO N121IB-L01 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
8S6P
Life Time
12K(Min.) (Hours)
Replacement
-
Lamp Shape
6 strings
Position
Edge light type
Lamp Electrical :
Voltage Input
25.6/27.2V (Typ./Max.)
Current Input
17.5/20mA (Typ./Max.)
Consumption
2.68/3.26W (Typ./Max.)
Interface Features :
Type
Connector
Position
-
Lamp Driver
With LED Driver
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
JST
SM07B-SRSS-TB
1.0 mm
7 pins
1 pcs

Driver Electrical :
Voltage Input
8.0/12.0/21.0V (Min./Typ./Max.)
Current Input
-



CMO N121IB-L01 Interface Detail

Signal Systerm :
LVDS (1 ch, 6-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
330/360mA (Typ./Max.)
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
HRS
DF19KR-20P-1H
1.0 mm
20 pins
1 pcs
LVDS-20P1C6B-180D

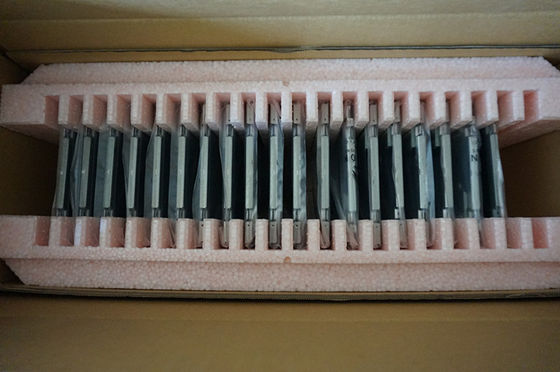

CMO N121IB-L01 Carton Details

Package Carton : Amount Net Weight Carton Size (L×W×H)
20 pcs / box 7.3 Kgs 374×334×348 mm



  FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
