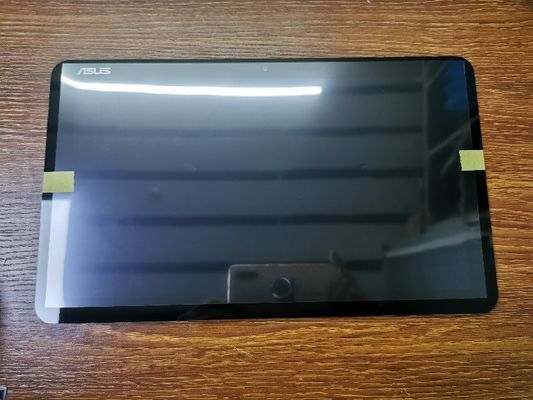

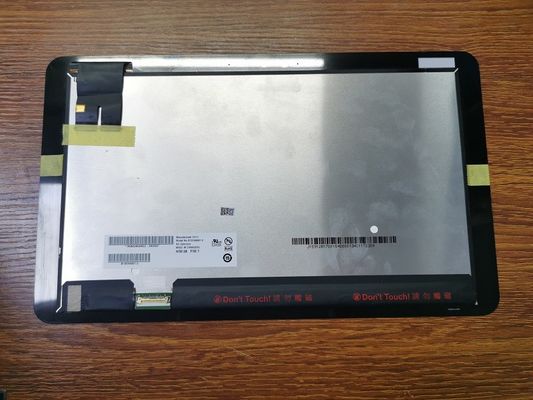

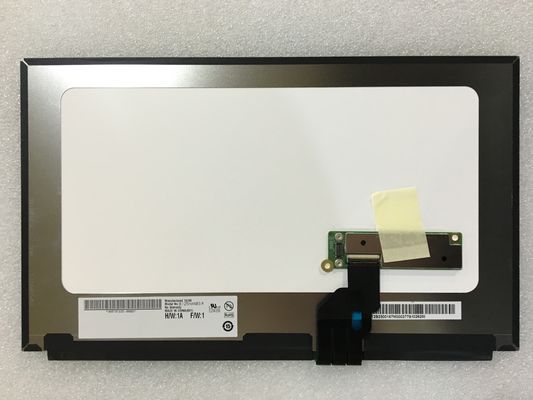

N120ACA-EA1 Innolux 12.0" 1366(RGB)×912 235 cd/m² INDUSTRIAL LCD DISPLAY

N120ACA-EA1 Innolux 12.0" 1366(RGB)×912 235 cd/m² INDUSTRIAL LCD DISPLAY
N120ACA-EA1 Innolux 12.0" 1366(RGB)×912 235 cd/m² INDUSTRIAL LCD DISPLAY N120ACA-EA1 Innolux 12.0" 1366(RGB)×912 235 cd/m² INDUSTRIAL LCD DISPLAY N120ACA-EA1 Innolux 12.0" 1366(RGB)×912 235 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  N120ACA-EA1 Innolux 12.0" 1366(RGB)×912 235 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: INNOLUX
Certification: ISO9001
Model Number: N120ACA-EA1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 200PCS
Contact Now

N120ACA-EA1 Innolux 12.0" 1366(RGB)×912 235 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: N120ACA-EA1 BRAND: INNOLUX
SIZE: 11.6 Inch BRIGHTNESS: 235CD/M2
Lamp Type: WLED RESOLUTION: 1366(RGB)×912 (HD+) 136PPI
VIEWING ANGLEG: Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
Highlight:

NTSC Lcd Video Panel

,

Antiglare NEC TFT Display

,

Capacitive TFT Touch Panel



Innolux N120ACA-EA1 Application Details

Basic Info :
Panel Brand

N120ACA-EA1Panel Model
Diagonal Size
12.0"
Application

a-Si TFT-LCD , LCMPanel Type
Model Alias
CMN1247
Reliability :
Operating Temp.
0 ~ 50 °C
Storage Temp.
-20 ~ 60 °C
RoHS State

1.5G (14.7 m/s²)Vibration Rating



Innolux N120ACA-EA1 Mechanical Details

Pixel Features :
Pixel Format
1366(RGB)×912, HD+
Dot Pitch
0.06185×0.18555 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.18555×0.18555 mm (H×V) [136PPI]
Mechanical Size :
Display Area
253.461×169.222 mm (H×V)
Bezel Area
-
Outline Dim.
262.26×194.12 mm (H×V)
Outline Depth
2.43/2.6 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
15:10 (H:V)
Shape Style
Slim (PCBA Flat, T≤3.2mm)
Holes & Brackets :
Without
Other Features :
Weight
235g (Max.)
Surface
Antiglare, Hard coating (3H)



Innolux N120ACA-EA1 Optical Details

Basic Information :
Brightness
235 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Optical Mode
AAS, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
11/9 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
262K (6-bit)
Color Temperature
6485K
Uniformity
1.33/1.54 (Typ./Max.)(13 points)
1931 Color Gamlt :
NTSC Ratio
50%
sRGB
71% coverage
Adobe RGB
53% coverage
DCI-P3
52% coverage
Rec.2020
38% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Innolux N120ACA-EA1 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
-
Life Time
15K(Min.) (Hours)
Replacement
-
Lamp Shape
-
Position
Edge light type
Interface Features :
Type
Included in panel signal interface
Position
-
Lamp Driver
With LED Driver
Driver Electrical :
Voltage Input
5.0/12.0/19.0V (Min./Typ./Max.)
Current Input
137/153/161mA (Min./Typ./Max.)
Consumption
1.92W (Max.)





Innolux N120ACA-EA1 Interface Detail

Signal Systerm :
eDP (1 Lane), eDP1.2
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
90/110mA (Typ./Max.)
Consumption
0.38W (Max.)
Interface Features :
Type
Connector
Position
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
I-PEX
20455-030E-76
0.5 mm
30 pins
1 pcs
EDP-30P1L-030A



Innolux N120ACA-EA1 Carton Details

Package Carton : Amount Net Weight Carton Size (L×W×H)
50 pcs / box - 540×450×320 mm





Innolux N120ACA-EA1 Electronics Details

Frame Frequency :
60Hz
Reverse Scan :
No
Power Consumption :
2.30W (Max.)



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
