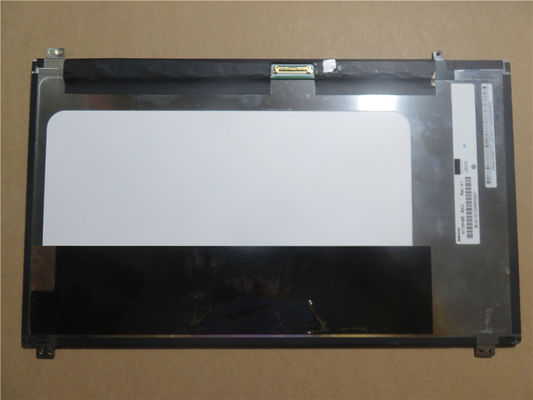

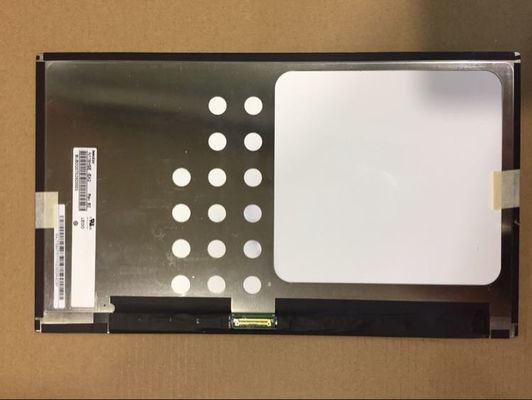

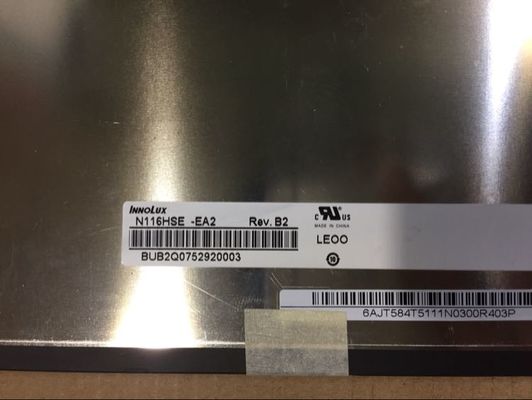

N116HSE-EA2 Innolux 11.6" 1920(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY

N116HSE-EA2 Innolux 11.6" 1920(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY
N116HSE-EA2 Innolux 11.6" 1920(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY N116HSE-EA2 Innolux 11.6" 1920(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY N116HSE-EA2 Innolux 11.6" 1920(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY N116HSE-EA2 Innolux 11.6" 1920(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  N116HSE-EA2 Innolux 11.6" 1920(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: INNOLUX
Certification: ISO9001
Model Number: N116HSE-EA2
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 500PCS
Contact Now

N116HSE-EA2 Innolux 11.6" 1920(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: N116HSE-EA2 BRAND: INNOLUX
SIZE: 11.6 Inch BRIGHTNESS: 300CD/M2
Lamp Type: WLED RESOLUTION: 1920(RGB)×1080, FHD, 190PPI
VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
High Light:

NTSC Lcd Video Panel

,

Antiglare NEC TFT Display

,

Capacitive TFT Touch Panel

Innolux N116HSE-EA2 Application Details

Basic Information :
Brand

N116HSE-EA2Model
Type
a-Si TFT-LCD , LCM
Used For



Screen Size
11.6 inch
Alias
CMN1133
Environment :
Storage Temp.
-20 ~ 60 °C
Operating Temp.
0 ~ 50 °C



Innolux N116HSE-EA2 Mechanical Details

Pixel Features :
Resolution
1920(RGB)×1080, FHD
Dot Pitch(mm)
0.0445×0.1335 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.1335×0.1335 (H×V) [190PPI]
Mechanical Size :
Active Area(mm)
256.32(H) × 144.18(V)
Bezel Area(mm)
-
Outline Dim.(mm)
268(H) × 157.35(V)
Depth(mm)
2.7/5.15mm (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style
Slim (PCBA Bent, T≤3.0mm)
Aspect Ratio
16:9 (H:V)
Orientation
Landscape type
Mounting :
Without
Other Spec :
Weight
210/220g (Typ./Max.)
Treatment
Antiglare, Hard coating (3H)



Innolux N116HSE-EA2 Optical Details

Basic Information :
Luminance(cd/m²)
300 (Typ.)
Contrast Ratio
700:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Display Mode
AAS, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
14/11 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
16.7M (8-bit)
Color Temperature
6485K
White Uniformity
1.25/1.43 (Typ./Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
72%
sRGB
95% coverage
Adobe RGB
73% coverage
DCI-P3
75% coverage
Rec.2020
54% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Innolux N116HSE-EA2 Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
250/280mA (Typ./Max.)
Consumption
0.89W (Max.)
Signal Type :
eDP (2 Lanes)
Logic Voltage
-
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
I-PEX
20455-030E-12
0.5 mm
30 pins
1 pcs
EDP-30P2L-016A



Innolux N116HSE-EA2 Backlight Details

Backlight Features :
Type
WLED
Quantity
4 strings
Position
Edge light type
Replacement
-
Shape
4 strings
Life Time
15K(Min.) (Hours)
Lamp Electrical :
Voltage Supply
31.9±3.3V
Current Supply
17.5mA (Typ.)
Consumption
2.2/2.47W (Typ./Max.)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
No



Innolux N116HSE-EA2 Packing Details

Package Box : Quantity Weight Box Size
30 pcs / box - 489×382×275 mm (L×W×H)



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
