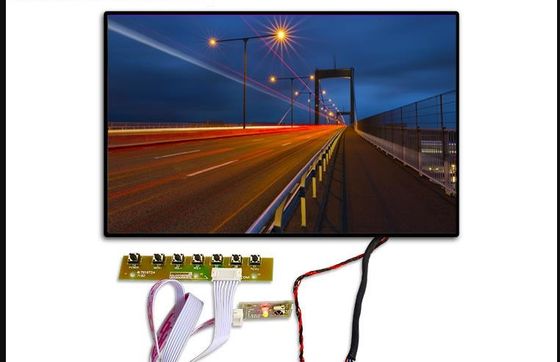

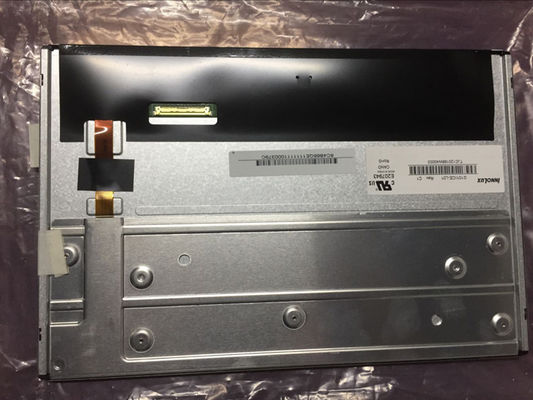

Product Details:
|
| MODEL NUMBER: | N101ICG-L21 Rev.C2 | BRAND: | INNOLUX |
|---|---|---|---|
| BRIGHTNESS: | 350CD/M2 | SIZE: | 10.1INCH |
| Lamp Type: | WLED | RESOLUTION: | 1280(RGB)×800, WXGA, 149PPI |
| VIEWING ANGLEG: | 85/85/85/85 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C |
| Highlight: | NTSC Lcd Video Panel,VGA Touch Lcd Video Display,RGB Vertical LCD Display |
||
| Basic Detail : | Manufacturer | Model Name | N101ICG-L21 Rev.C2 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 10.1 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -10 ~ 60 °C | ST Temperature | -20 ~ 70 °C |
| Vibration Level | - | RoHS |
| Basic Information : | Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 14/11 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | AAS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.308; Wy:0.324 | Support Color | 262K (6-bit) |
| Color Temperature | 6810K | White Uniformity | 1.11/1.25 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 52% | sRGB | 72% coverage |
| Adobe RGB | 55% coverage | DCI-P3 | 54% coverage | |
| Rec.2020 | 39% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1280(RGB)×800 [WXGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0565×0.1695 mm | Pixel Pitch(W×H) | 0.1695×0.1695 mm [149PPI] | |
| Physical Size : | Active Viewing | 216.96(W)×135.6(H) mm | Overall Dim. | 227.42(W)×147.69(H) mm |
| Bezel Opening | 219.31(W)×138.25(H) mm | Overall Depth | 2.16/4.85 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:10 | Shape Style | ||
| Fixation : | Without | |||
| Other Detail : | Mass | 120/135g (Typ./Max.) | Surface | Glare (Haze 0%), Hard coating (3H) |
| Signal Electrical : | Input Current | 220/265mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | LVDS (1 ch, 6-bit) | |||

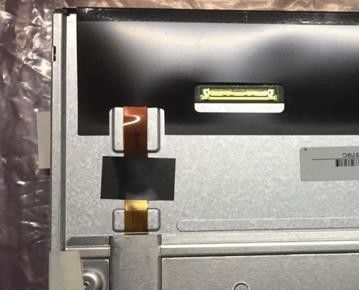

| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| Panasonic | AYF334535 | 1 pcs | 0.3 mm | 45 pins | ||
| Lamp Features: | Lamp Shape | 3 strings | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 3 strings | Life | 12K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 66.9mA (Typ.) | Input Voltage | 22.4/24/24.8V (Min./Typ./Max.) | ||
| Consumption | 1.61/1.66W (Typ./Max.) | |||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 30 pcs / box | 435×350×275 mm | 7.2 Kgs |
