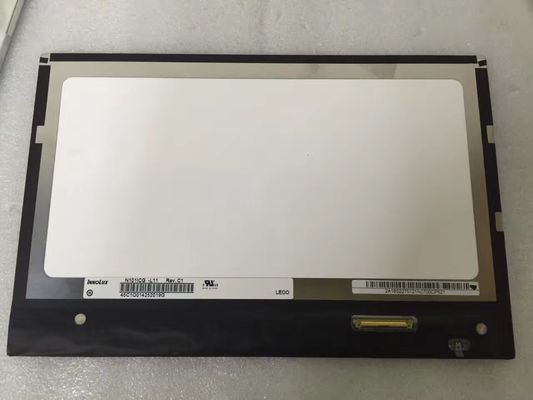

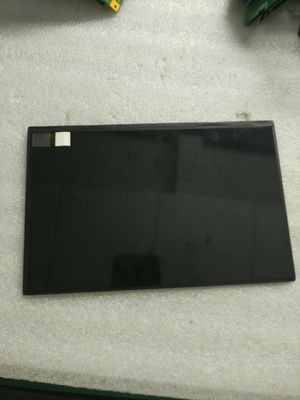

N101ICG-L21 Rev.C1 Innolux 10.1" 1280(RGB)×800 350 cd/m² INDUSTRIAL LCD DISPLAY

N101ICG-L21 Rev.C1 Innolux 10.1" 1280(RGB)×800 350 cd/m² INDUSTRIAL LCD DISPLAY
N101ICG-L21 Rev.C1 Innolux 10.1" 1280(RGB)×800 350 cd/m² INDUSTRIAL LCD DISPLAY N101ICG-L21 Rev.C1 Innolux 10.1" 1280(RGB)×800 350 cd/m² INDUSTRIAL LCD DISPLAY N101ICG-L21 Rev.C1 Innolux 10.1" 1280(RGB)×800 350 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  N101ICG-L21 Rev.C1 Innolux 10.1" 1280(RGB)×800 350 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: INNOLUX
Certification: ISO9001
Model Number: N101ICG-L21 Rev.C1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 200PCS
Contact Now

N101ICG-L21 Rev.C1 Innolux 10.1" 1280(RGB)×800 350 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: N101ICG-L21 Rev.C1 BRAND: INNOLUX
SIZE: 10.1INCH BRIGHTNESS: 350CD/M2
Lamp Type: WLED RESOLUTION: 1280(RGB)×800 (WXGA) 149PPI
VIEWING ANGLEG: 85/85/85/85 (Typ.)(CR≥10) TEMPERATURE RANGE: Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C
Highlight:

NTSC Lcd Video Panel

,

VGA Touch Lcd Video Display

,

RGB Vertical LCD Display

Innolux N101ICG-L21 Rev.C1 Application Details

Basic Detail :
Manufacturer

N101ICG-L21 Rev.C1N101ICG-L21 Rev.C1 Innolux 10.1" 1280(RGB)×800 350 cd/m² INDUSTRIAL LCD DISPLAY 0 2 CompatibleModel Name
Panel Type
a-Si TFT-LCD , LCM
Another Name
CMN1037
Panel Size
10.1 inch
Designed For
Maximum Ratings :
OP Temperature
-10 ~ 60 °C
ST Temperature
-20 ~ 70 °C
RoHS

-Vibration Level





Innolux N101ICG-L21 Rev.C1 Optical Details

Basic Detail :
Luminance
350 cd/m² (Typ.)
Contrast Ratio
800:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
14/11 (Typ.)(Tr/Td) ms
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Operating Mode
AAS, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.308; Wy:0.324
Support Color
262K (6-bit)
Color Temperature
6810K
White Variation
1.11/1.25 (Typ./Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
52%
sRGB
72% coverage
Adobe RGB
55% coverage
DCI-P3
54% coverage
Rec.2020
39% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Innolux N101ICG-L21 Rev.C1 Mechanical Details

Pixel Features :
Number of Pixel
1280(RGB)×800, WXGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.0565×0.1695 mm
Pixel Pitch(W×H)
0.1695×0.1695 mm [149PPI]
Physical Size :
Active Viewing
216.96(W)×135.6(H) mm
Overall Dim.
227.42(W)×147.69(H) mm
Bezel Opening
219.31(W)×138.25(H) mm
Overall Depth
2.16/4.85 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
16:10
Shape Style

Fixation :
Without
Other Detail :
Mass
120/135g (Typ./Max.)
Surface
Glare (Haze 0%), Hard coating (3H)



Innolux N101ICG-L21 Rev.C1 Interface Detail

Signal Electrical :
Input Current
220/265mA (Typ./Max.)
Input Voltage
3.3V (Typ.)
Consumption
-
Signal Interface
LVDS (1 ch, 6-bit)
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
I-PEX
20455-040E-12
0.5 mm
40 pins
1 pcs
LVDS-40P1C6B-060B



Innolux N101ICG-L21 Rev.C1 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
3 strings
Position
Edge light type
Exchange
-
Lamp Shape
Array
Lamp Life
12K(Min.) (Hours)
Lamp Electrical :
Input Voltage
22.4/24/24.8V (Min./Typ./Max.)
Input Current
66.9mA (Typ.)
Consumption
1.61/1.66W (Typ./Max.)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Input Voltage
6.0/12.0/15.0V (Min./Typ./Max.)
Input Current
133/158/181mA (Min./Typ./Max.)

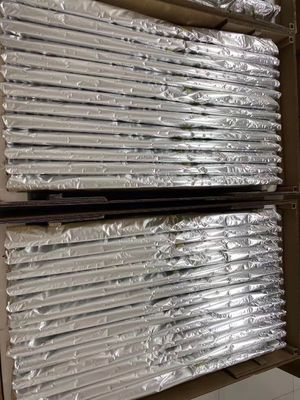

Innolux N101ICG-L21 Rev.C1 Packing Details

Package Box : Amount Size (L×W×H) Weight
30 pcs / box 7.2 Kgs 435×350×275 mm

  FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
