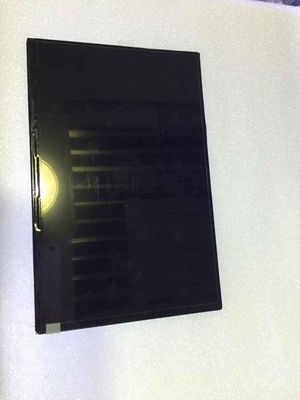

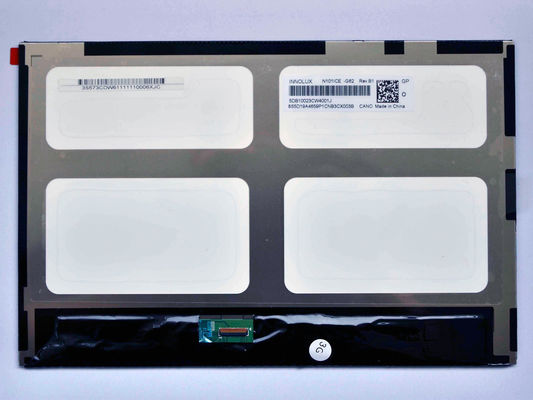

Product Details:
|

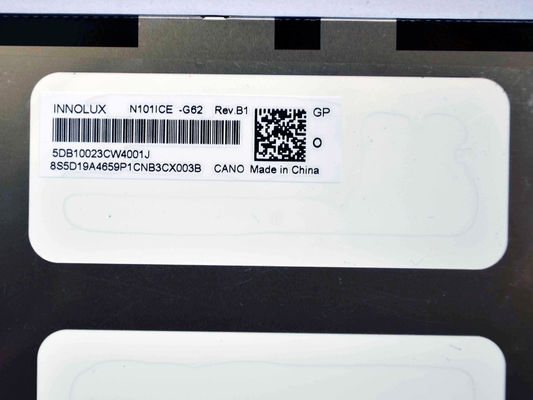

| MODEL NUMBER: | N101ICE-G62 | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 10.1INCH | BRIGHTNESS: | 350CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1280(RGB)×800 [WXGA] 149PPI |
| VIEWING ANGLEG: | 85/85/85/85 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: -10 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | NTSC Lcd Video Panel,VGA Touch Lcd Video Display,RGB Vertical LCD Display |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| N101ICE-G62 | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -10 ~ 50 °C | -20 ~ 60 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 350 (Typ.) | 85/85/85/85 (Typ.)(CR≥10) | 10/15 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | AAS, Normally Black, Transmissive | 800 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6638K | 16.7M (8-bit) | X:0.310; Y:0.330 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 53% | 73% | 55% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 55% | 39% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.33/1.43 (Typ./Max.)(9 points) | ||
| Panel Size : | 10.1" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1280(RGB)×800 [WXGA] | RGB Vertical Stripe | 0.1695×0.1695 [149PPI] | 0.0565×0.1695 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 216.96(H) × 135.6(V) | - | 228.6(H) × 149.2(V) | 2.6/4.6 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:10 (H:V) | ||
| Mounting : | Without | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 160g (Typ.) | - | Glare (Haze 0%), Hard coating (3H) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 6 strings | 6 strings | - | - | |
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | |||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 265/365mA (Typ./Max.) | 1.15W (Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| MIPI (4 data lanes) | Connector | |||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| HRS | FH26W-39S-0.3SHW | 0.3 mm | 39 pins | 1 pcs | ||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 40 pcs / box | 12.14±0.6 Kgs | 530×367×260 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
