Product Details:
|

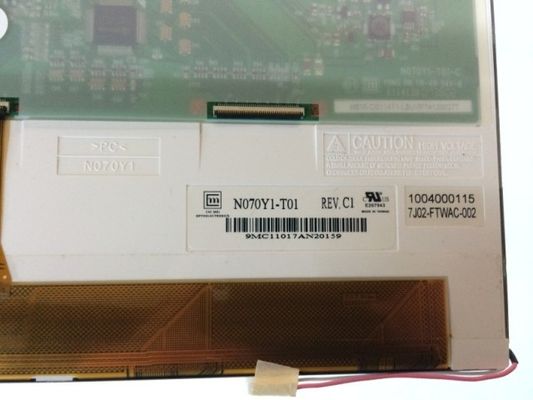

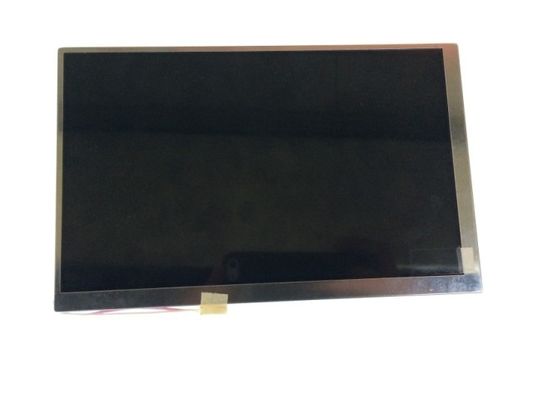

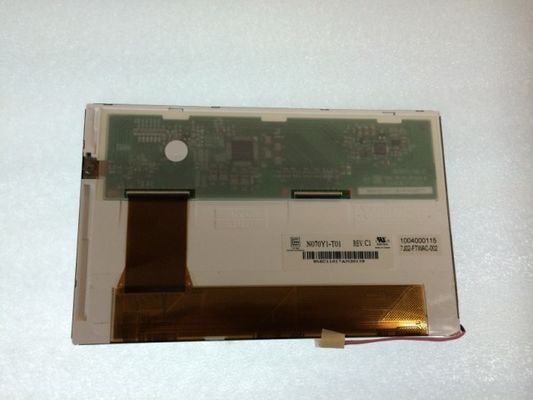

| MODEL NUMBER: | N070Y1-T01 | BRAND: | CMO |
|---|---|---|---|
| SIZE: | 7.0INCH | BRIGHTNESS: | 250CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 800(RGB)×480, WVGA, 133PPI |
| VIEWING ANGLEG: | 70/70/60/60 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Erating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Highlight: | NTSC Lcd Video Panel,VGA Touch Lcd Video Display,RGB Vertical LCD Display |
||
| Basic Detail : | Manufacturer | Model Name | N070Y1-T01 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 7.0 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Vibration Level | - | RoHS |
| Basic Information : | Luminance | 250 cd/m² (Typ.) | Contrast Ratio | 400 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | - | Response Speed | 5/11 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.40 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 50% | sRGB | 70% coverage |
| Adobe RGB | 53% coverage | DCI-P3 | 52% coverage | |
| Rec.2020 | 38% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 800(RGB)×480 [WVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0635×0.1905 mm | Pixel Pitch(W×H) | 0.1905×0.1905 mm [133PPI] | |
| Physical Size : | Active Viewing | 152.4(W)×91.44(H) mm | Overall Dim. | 165(W)×104(H) mm |
| Bezel Opening | 155.3(W)×94.3(H) mm | Overall Depth | 5.2/5.8 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 15:9 | Shape Style | ||
| Fixation : | Without | |||
| Other Detail : | Mass | 125/140g (Typ./Max.) | Surface | Antiglare |
| Signal Electrical : | Input Current | 140/220mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.46W (Typ.) | Signal Interface | Parallel RGB (1 ch, 6-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | FH19S-40S-0.5SH | 1 pcs | 0.5 mm | 40 pins | ||
| Lamp Features: | Lamp Shape | Straight | Lamp Type | CCFL | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 1 pcs | Life | 30K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 5.5±1mA | Input Voltage | 365/383/403V (Min./Typ./Max.) | ||
| Frequency | 40/80KHz (Min./Max.) | Turn-on Voltage | 665/730V (Max.)(Ta=+25/0℃) | |||
| Consumption | 2.10W (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHSR-02VS-1 | 1 pcs | 3.5 mm | 2 pins | BLL-2PINS-HL | |
| Backlight Driver : | No | |||||
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 40 pcs / box | 510×310×269 mm | 5.8 Kgs |
