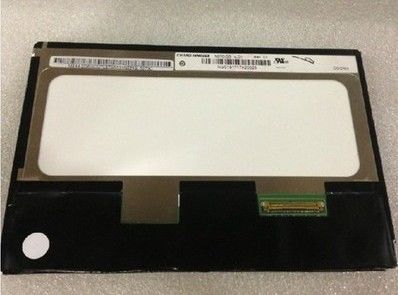

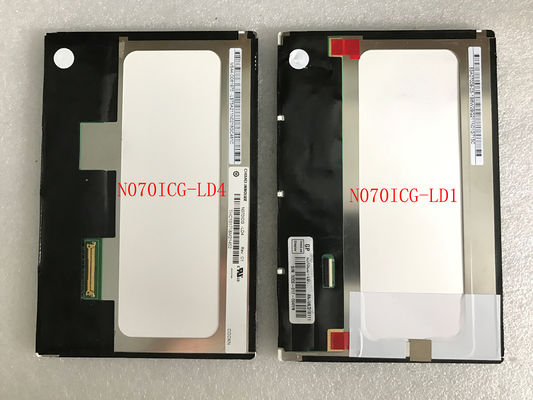

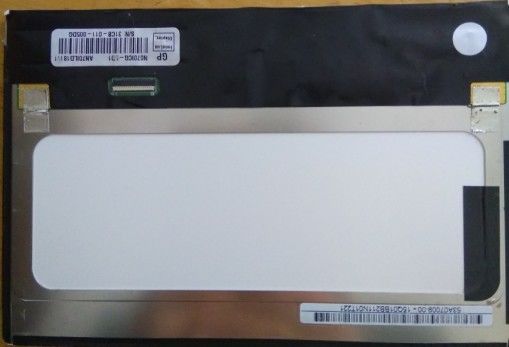

Product Details:
|
| MODEL NUMBER: | N070ICG-LD4 | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 7.0INCH | BRIGHTNESS: | 400 Cd/m² (Typ.) |
| Lamp Type: | WLED | RESOLUTION: | 1280(RGB)×800, WXGA, 217PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C |
| Signal Interface: | LVDS | Contrast Ratio: | 800:1 (Typ.) (TM) |
| Highlight: | NTSC Lcd Video Panel,VGA Touch Lcd Video Display,RGB Vertical LCD Display |
||
| Basic Detail : | Manufacturer | Model Name | N070ICG-LD4 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 7.0 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | -10 ~ 60 °C | ST Temperature | -20 ~ 70 °C |
| Vibration Level | - | RoHS |
| Basic Information : | Luminance | - | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 13/12 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | - | Support Color | 262K (6-bit) |
| Pixel Features : | Number of Pixel | 1280(RGB)×800 [WXGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.039×0.117 mm | Pixel Pitch(W×H) | 0.117×0.117 mm [217PPI] | |
| Physical Size : | Active Viewing | 149.76(W)×93.6(H) mm | Overall Dim. | - |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:10 | Shape Style |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Signal Electrical : | Input Current | - | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | LVDS (1 ch, 6-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
