N070ICG-LD1 Innolux 7.0" 1280(RGB)×800 400 cd/m² INDUSTRIAL LCD DISPLAY

N070ICG-LD1 Innolux 7.0" 1280(RGB)×800 400 cd/m² INDUSTRIAL LCD DISPLAY

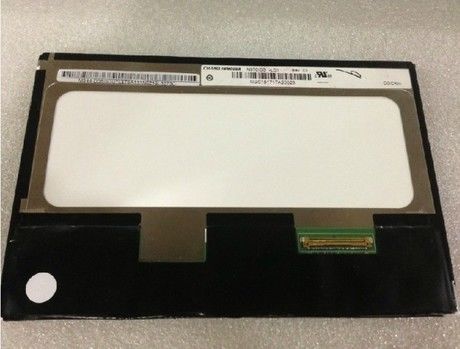

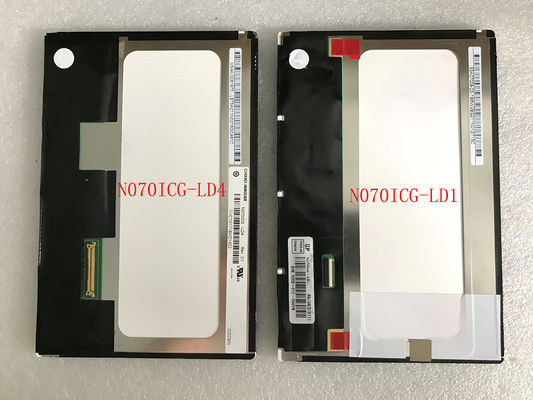

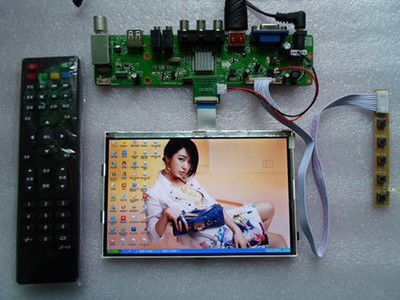

N070ICG-LD1 Innolux 7.0" 1280(RGB)×800 400 cd/m² INDUSTRIAL LCD DISPLAY N070ICG-LD1 Innolux 7.0" 1280(RGB)×800 400 cd/m² INDUSTRIAL LCD DISPLAY N070ICG-LD1 Innolux 7.0" 1280(RGB)×800 400 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  N070ICG-LD1 Innolux 7.0" 1280(RGB)×800 400 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: INNOLUX
Certification: ISO9001
Model Number: N070ICG-LD1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 800PCS
Contact Now

N070ICG-LD1 Innolux 7.0" 1280(RGB)×800 400 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: N070ICG-LD1 BRAND: INNOLUX
SIZE: 7.0INCH BRIGHTNESS: 400 Cd/m² (Typ.)
Lamp Type: WLED RESOLUTION: 1280(RGB)×800 (WXGA) 217PPI
VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10) TEMPERATURE RANGE: Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C
Highlight:

NTSC Lcd Video Panel

,

VGA Touch Lcd Video Display

,

RGB Vertical LCD Display

Innolux N070ICG-LD1 Application Details

Basic Information :
Brand

N070ICG-LD1 1 CompatibleModel
Type
a-Si TFT-LCD , LCM
Used For




  •
Screen Size
7.0 inch
Alias
-
Environment :
Storage Temp.
-20 ~ 70 °C
Operating Temp.
-10 ~ 60 °C
RoHS

-Vibration



Innolux N070ICG-LD1 Mechanical Details

Pixel Features :
Resolution
1280(RGB)×800, WXGA
Dot Pitch(mm)
0.039×0.117 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.117×0.117 (H×V) [217PPI]
Mechanical Size :
Active Area(mm)
149.76(H) × 93.6(V)
Bezel Area(mm)
151.76(H) × 95.6(V)
Outline Dim.(mm)
161(H) × 107(V)
Depth(mm)
2.5/4.5 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
16:10 (H:V)
Orientation
Landscape type
Mounting :
Without
Other Spec :
Weight
85.0/95.0g (Typ./Max.)
Treatment
Glare (Haze 0%), Hard coating (3H)



Innolux N070ICG-LD1 Optical Details

Basic Information :
Luminance(cd/m²)
400 (Typ.)
Contrast Ratio
800:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Display Mode
IPS, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
14/11 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.308; Wy:0.324
Display Colors
16.7M (8-bit)
Color Temperature
6810K
White Uniformity
1.25/1.43 (Typ./Max.)(9 points)



Innolux N070ICG-LD1 Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
273/300mA (Typ./Max.)
Signal Type :
LVDS (1 ch, 8-bit)
Logic Voltage
-
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
FCI
10064555-392120HLF
0.3 mm
39 pins
1 pcs



Innolux N070ICG-LD1 Backlight Details

Backlight Features :
Type
WLED
Quantity
9S2P
Position
Edge light type
Replacement
-
Shape
Array
Life Time
12K(Min.) (Hours)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
6.0/12.0/21.0V (Min./Typ./Max.)
Current Supply
83/104/125mA (Min./Typ./Max.)



Innolux N070ICG-LD1 Packing Details

Package Box : Quantity Weight Box Size
60 pcs / box 7.95 Kgs 435×350×275 mm (L×W×H)



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
