Product Details:
|

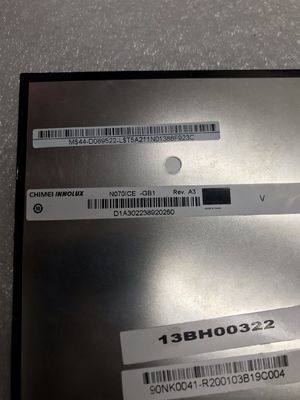

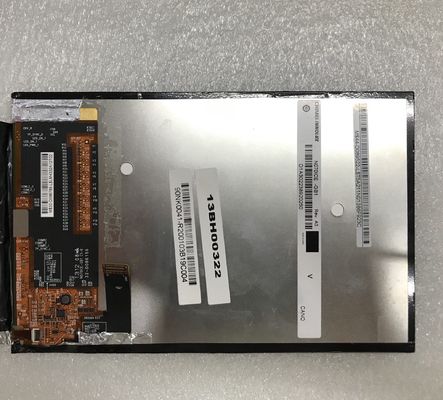

| MODEL NUMBER: | N070ICE-GB1 | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 7.0INCH | BRIGHTNESS: | 300CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 800(RGB)×1280, WXGA, 215PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C |
| Highlight: | NTSC Lcd Video Panel,VGA Touch Lcd Video Display,RGB Vertical LCD Display |
||
| Basic Information : | Brand | Model | N070ICE-GB1 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 7.0" | Alias | - | |
| Environment : | Storage Temp. | -20 ~~ 70 °C | Operating Temp. | -10 ~~ 60 °C |
| RoHS | Vibration | 1.5G (14.7 m/s²) |
| Pixel Features : | Resolution | 800(RGB)×1280, WXGA | Dot Pitch(mm) | 0.03925×0.11775 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.11775×0.11775 (H×V) [215PPI] | |
| Mechanical Size : | Active Area(mm) | 94.2(H) × 150.72(V) | Bezel Area(mm) | 97.35(H) × 153.82(V) |
| Outline Dim.(mm) | 105.62(H) × 163.27(V) | Depth(mm) | 2.4/3.95 (Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 10:16 (H:V) | Orientation | Portrait type | |
| Mounting : | Without | |||
| Other Spec : | Weight | 90.0g (Max.) | Treatment | Glare (Haze 0%), Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 300 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | IPS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 14/11 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.306; Y:0.336 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6795K | White Uniformity | 1.43 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 61% | sRGB | 83% coverage |
| Adobe RGB | 64% coverage | DCI-P3 | 64% coverage | |
| Rec.2020 | 46% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 1.8/3.3V (Typ.)(VCC/VDD) | Current Supply | 132mA (Typ.)(IDD) | ||
|---|---|---|---|---|---|---|
| Signal Type : | MIPI (4 data lanes) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| Panasonic | AXT636124 | 1 pcs | 36 pins | 0.4 mm | ||
| Backlight Features: | Shape | 6 strings | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 3S6P | Life Time | 12K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 8.4/9.0/9.9V (Min./Typ./Max.) | Current Supply | 114mA (Typ.) | ||
| Consumption | 1.03/1.13W (Typ./Max.) | |||||
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 60 pcs / box | - | 435×350×275 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
