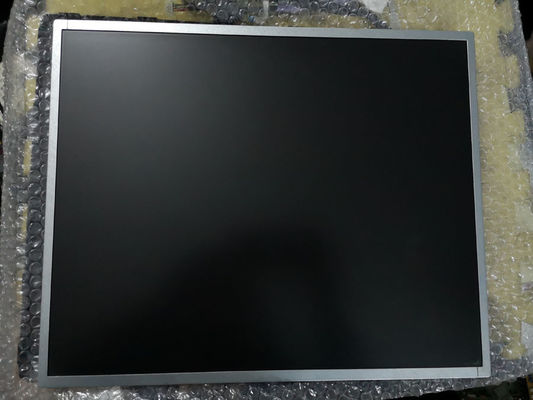

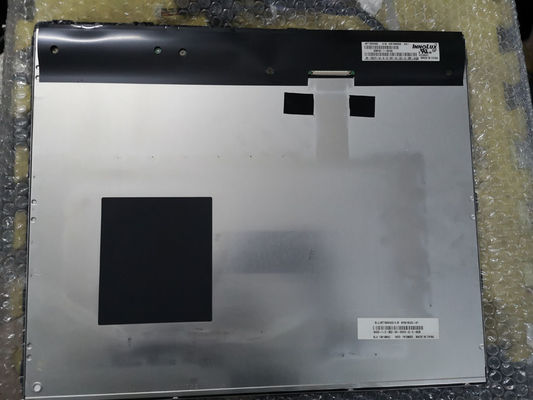

Product Details:
|

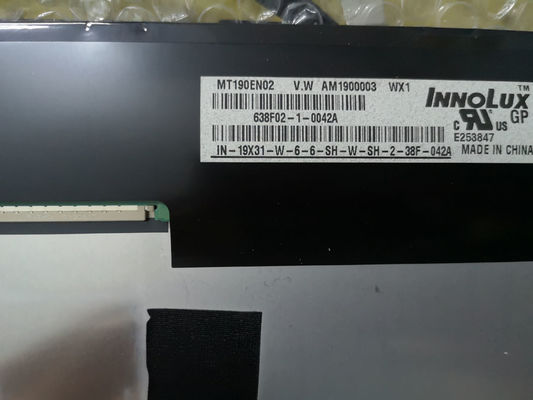

| MODEL NUMBER: | MT190EN02 V.W | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 19.0INCH | BRIGHTNESS: | 250CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1280(RGB)×1024 [SXGA] 86PPI |
| VIEWING ANGLEG: | 85/85/80/80 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | NTSC Lcd Video Panel,VGA Touch Lcd Video Display,RGB Vertical LCD Display |
||
| Basic Information : | Brand | Model | MT190EN02 V.W | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 19.0" | Alias | - | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| RoHS | Vibration |
| Pixel Features : | Resolution | 1280(RGB)×1024, SXGA | Dot Pitch(mm) | 0.098×0.294 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.294×0.294 (H×V) [86PPI] | |
| Mechanical Size : | Active Area(mm) | 376.32(H) × 301.056(V) | Bezel Area(mm) | 380.3(H) × 305.0(V) |
| Outline Dim.(mm) | 396(H) × 324(V) | Depth(mm) | 7.7/11.0 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Normal bezel |
| Aspect Ratio | 5:4 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (8-M2) on left, right bezel | |||
| Other Spec : | Weight | 1.40/1.50Kgs (Typ./Max.) | Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 250 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 1.5/3.5 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 73% | sRGB | 95% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 0.7/1.0A (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 3.7W (Max.) | |||||
| Signal Type : | LVDS (2 ch, 8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| FOXCONN | GS23302-0011R-7H | 1 pcs | 30 pins | 1.0 mm | LVDS-30P2C8B-160A | |
| Backlight Features: | Shape | 6 strings | Type | WLED | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 10S12P | Life Time | 30K(Typ.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 32/34V (Typ./Max.) | Current Supply | 44/48.4mA (Typ./Max.) | ||
| Consumption | 8.45/8.98W (Typ./Max.) | |||||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| E&T | 7083K-F10N-01L | 1 pcs | 10 pins | 0.5 mm | BLE-10PINS-CCCAAAACCC | |
| Backlight Driver : | No | |||||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 9 pcs / box | 15.13 Kgs | 470×282×442 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
