Product Details:
|
| MODEL NUMBER: | M315DJJ-K31 | BRAND: | INNOLUX |
|---|---|---|---|
| SIZE: | 32.0INCH | BRIGHTNESS: | 400 Cd/m² (Typ.) |
| Lamp Type: | WLED | RESOLUTION: | 3840(RGB)×2160, UHD, 139PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10 | TEMPERATURE RANGE: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| High Light: | NTSC Lcd Video Panel,VGA Touch Lcd Video Display,RGB Vertical LCD Display |
||
| Basic Detail : | Manufacturer | Model Name | M315DJJ-K31 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 32.0 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Vibration Level | 1.5G (14.7 m/s²) | RoHS |
| Basic Information : | Luminance | 400 cd/m² (Typ.), HDR600 | Contrast Ratio | 3000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 15/5 (Typ.)(Tr/Td); 9.5 (Typ.)(G to G) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | MVA, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 1.07B (8-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.42 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 97% | sRGB | 100% coverage |
| Adobe RGB | 89% coverage | DCI-P3 | 98% coverage | |
| Rec.2020 | 73% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 3840(RGB)×2160 [UHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.060625×0.181875 mm | Pixel Pitch(W×H) | 0.181875×0.181875 mm [139PPI] | |
| Physical Size : | Active Viewing | 698.4(W)×392.85(H) mm | Overall Dim. | 717.4(W)×413.85(H) mm |
| Bezel Opening | 703.4(W)×397.85(H) mm | Overall Depth | 17.9/18.9 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | Normal bezel | |
| Other Detail : | Mass | 3.46±0.18Kgs | Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Signal Electrical : | Input Current | 0.73/0.88A (Typ./Max.) | Input Voltage | 12.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 15.12/16.8W (Typ./Max.) | Signal Interface | V-by-One 8 lane | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| FCN | WF23-402-5133 | 1 pcs | 0.5 mm | 51 pins | ||
| Lamp Features: | Lamp Shape | 8 strings × 2CN | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 30K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 150±7.5mA | Input Voltage | 24/30/32V (Min./Typ./Max.) | ||
| Consumption | 72/76.8W (Typ./Max.) | |||||
| Interface Features : | Position | Physical Type | Connector | |||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| FCN | WM13-406-123N | 2 pcs | 1.0 mm | 12 pins | BLE-12PINS-CCCCNAANCCCC | |
| Backlight Driver : | No | |||||

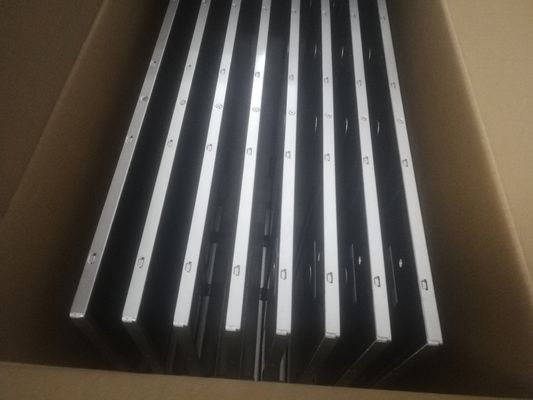

| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 8 pcs / box | 826×376×540 mm | 35 Kgs |
