M270KCJ-L5B Rev.C1 C2 Innolux 27.0" 2560(RGB)×1440 350 cd/m² INDUSTRIAL LCD DISPLAY

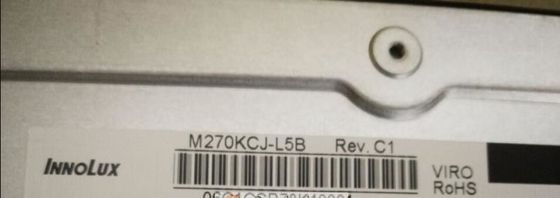

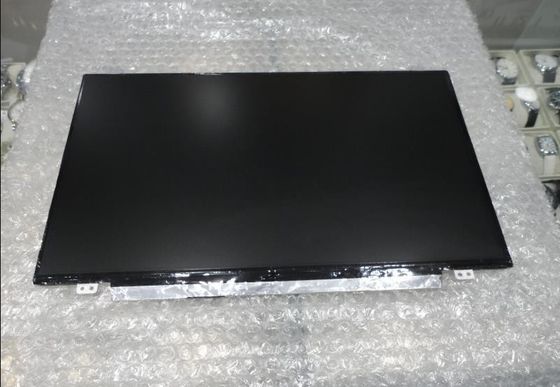

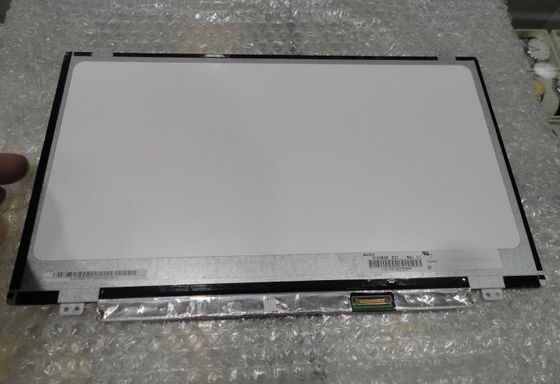

Large Image : M270KCJ-L5B Rev.C1 C2 Innolux 27.0" 2560(RGB)×1440 350 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:

Place of Origin:	JAPAN
Brand Name:	INNOLUX
Certification:	ISO9001
Model Number:	M270KCJ-L5B Rev.C1 C2

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	500PCS

Contact Now

M270KCJ-L5B Rev.C1 C2 Innolux 27.0" 2560(RGB)×1440 350 cd/m² INDUSTRIAL LCD DISPLAY

Description

MODEL NUMBER:	M270KCJ-L5B Rev.C1 C2	BRAND:	INNOLUX
SIZE:	27.0INCH	BRIGHTNESS:	350CD/M2
Lamp Type:	WLED	RESOLUTION:	2560(RGB)×1440 [Quad-HD] 108PPI
VIEWING ANGLEG:	89/89/89/89 (Typ.)(CR≥10	TEMPERATURE RANGE:	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
High Light:	NTSC Lcd Video Panel , VGA Touch Lcd Video Display , RGB Vertical LCD Display

Innolux M270KCJ-L5B Rev.C1 C2 Application Details

Basic Information :	Brand M270KCJ-L5B Rev.C1 C2Model Type a-Si TFT-LCD , LCM Used For 27.0 inchScreen Size Alias -
Environment :	Storage Temp. -20 ~ 60 °C Operating Temp. 0 ~ 50 °C RoHS Vibratio n

Innolux M270KCJ-L5B Rev.C1 C2 Mechanical Details

Pixel Features :	Resolution 2560(RGB)×1440, Quad-HD Dot Pitch(mm) 0.0777×0.2331 (H×V) Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.2331×0.2331 (H×V) [108PPI]
Mechanical Size :	Active Area(mm) 596.736(H) × 335.664(V) Bezel Area(mm) - Outline Dim.(mm) 608.8(H) × 355.13(V) Depth(mm) 12.8 (Typ.)
Outline Features :	Form Style Flat Rectangle Shape Style Normal bezel Aspect Ratio 16:9 (H:V) Orientation Landscape type
Other Spec :	Weight 2.58/2.87/3.01g (Min./Typ./Max.) Treatment Antiglare (Haze 25%), Hard coating (3H)

Innolux M270KCJ-L5B Rev.C1 C2 Optical Details

Basic Information :	Luminance(cd/m²) 350 (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive) Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Display Mode AAS, Normally Black, Transmissive Best View on Symmetry Response(ms) 8/7 (Typ.)(Tr/Td)
Color Performance :	White Coordinate Wx:0.313; Wy:0.329 Display Colors 16.7M (8-bit) Color Temperature 6485K White Uniformity 1.33 (Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio 92% sRGB 100% coverage Adobe RGB 88% coverage DCI-P3 94% coverage Rec.2020 69% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Innolux M270KCJ-L5B Rev.C1 C2 Interface Detail

Signal Electrical :	Voltage Supply 10.0V (Typ.) Current Supply 0.41/0.48A (Typ./Max.) Consumption 4.6/5.7W (Typ./Max.)
Signal Type :	LVDS (4 ch, 8-bit) Logic Voltage -
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration P-TWO 187059-51221 0.5 mm 51 pins 1 pcs P-TWO 187060-41221 0.5 mm 41 pins 1 pcs

Innolux M270KCJ-L5B Rev.C1 C2 Backlight Details

Backlight Features :	Type WLED Quantity 4 strings Position Edge light type Replacement - Shape 4 strings Life Time 30K(Min.) (Hours)
Lamp Electrical :	Voltage Supply 29/32.1/36.3V (Min./Typ./Max.) Current Supply 190/200mA (Typ./Max.) Consumption 24.4/27.6W (Typ./Max.)
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration CviLux CI1406M1VL0-NH 1.0 mm 6 pins 1 pcs BLE-6PINS-CCAACC
Backlight Driver :	No

Innolux M270KCJ-L5B Rev.C1 C2 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	10 pcs / box	35.1 Kgs	553×283×453 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

M270KCJ-L5B Rev.C1 C2 Innolux 27.0" 2560(RGB)×1440 350 cd/m² INDUSTRIAL LCD DISPLAY 0
