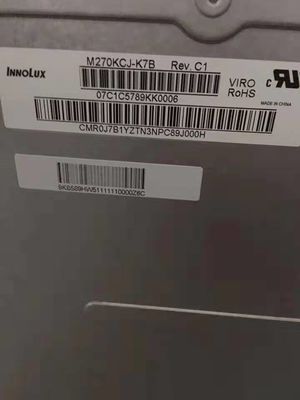

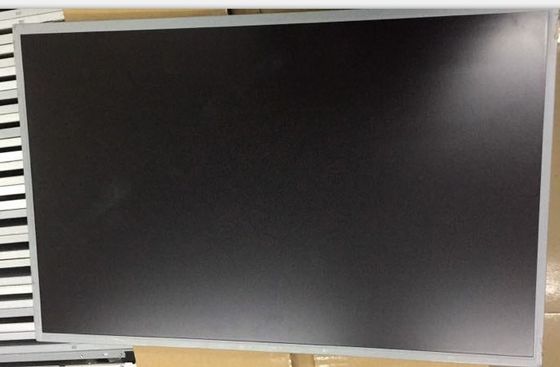

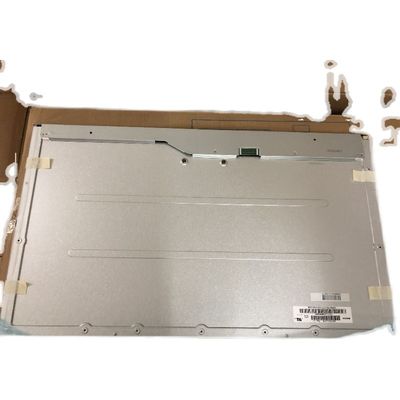

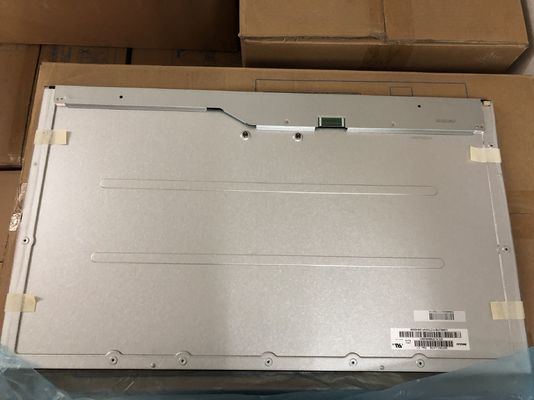

M270KCJ-K7B Innolux 27.0" 2560(RGB)×1440 350 cd/m² INDUSTRIAL LCD DISPLAY

M270KCJ-K7B Innolux 27.0" 2560(RGB)×1440 350 cd/m² INDUSTRIAL LCD DISPLAY
M270KCJ-K7B Innolux 27.0" 2560(RGB)×1440 350 cd/m² INDUSTRIAL LCD DISPLAY M270KCJ-K7B Innolux 27.0" 2560(RGB)×1440 350 cd/m² INDUSTRIAL LCD DISPLAY M270KCJ-K7B Innolux 27.0" 2560(RGB)×1440 350 cd/m² INDUSTRIAL LCD DISPLAY M270KCJ-K7B Innolux 27.0" 2560(RGB)×1440 350 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  M270KCJ-K7B Innolux 27.0" 2560(RGB)×1440 350 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: INNOLUX
Certification: ISO9001
Model Number: M270KCJ-K7B
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 500PCS
Contact Now

M270KCJ-K7B Innolux 27.0" 2560(RGB)×1440 350 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: M270KCJ-K7B BRAND: INNOLUX
SIZE: 27.0INCH BRIGHTNESS: 350CD/M2
Lamp Type: WLED RESOLUTION: 2560(RGB)×1440 [Quad-HD] 108PPI
VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
High Light:

NTSC Lcd Video Panel

,

VGA Touch Lcd Video Display

,

RGB Vertical LCD Display

Innolux M270KCJ-K7B Application Details

Basic Information :
Brand

M270KCJ-K7BModel
Type
a-Si TFT-LCD , LCM
Used For

  • M270KCJ-K7B Innolux 27.0" 2560(RGB)×1440 350 cd/m² INDUSTRIAL LCD DISPLAY 0
Screen Size
27.0 inch
Alias
-
Environment :
Storage Temp.
-20 ~ 60 °C
Operating Temp.
0 ~ 50 °C



Innolux M270KCJ-K7B Mechanical Details

Pixel Features :
Resolution
2560(RGB)×1440, Quad-HD
Dot Pitch(mm)
0.0777×0.2331 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.2331×0.2331 (H×V) [108PPI]
Mechanical Size :
Active Area(mm)
596.736(H) × 335.664(V)
Bezel Area(mm)
-
Outline Dim.(mm)
608.8(H) × 355.13(V)
Depth(mm)
9.3/13.8 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style
3-side borderless
Aspect Ratio
16:9 (H:V)
Orientation
Landscape type
Mounting :
Rear mounting holes (17-M3)
Other Spec :
Weight
2.58/2.87/3.01Kgs (Min./Typ./Max.)
Treatment
Antiglare (Haze 25%), Hard coating (3H)



Innolux M270KCJ-K7B Optical Details

Basic Information :
Luminance(cd/m²)
350 (Typ.), HDR400
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Display Mode
AAS, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
8/7 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
1.07B (10-bit)
Color Temperature
6485K
White Uniformity
1.33 (Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
94%
sRGB
100% coverage
Adobe RGB
86% coverage
DCI-P3
95% coverage
Rec.2020
70% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Innolux M270KCJ-K7B Interface Detail

Signal Electrical :
Voltage Supply
12.0V (Typ.)
Current Supply
0.53/0.68A (Typ./Max.)
Consumption
6.36/8.16W (Typ./Max.)
Signal Type :
V-by-One 8 lane
Logic Voltage
-
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
FCN
WF23-402-5133
0.5 mm
51 pins
1 pcs



Innolux M270KCJ-K7B Backlight Details

Backlight Features :
Type
WLED
Quantity
4 strings
Position
Edge light type (Bottom side)
Replacement
-
Shape
4 strings
Life Time
40K(Typ.) (Hours)
Lamp Electrical :
Voltage Supply
27.84/33/39.6V (Min./Typ./Max.)
Current Supply
160/168mA (Typ./Max.)
Consumption
21.12/25.344W (Typ./Max.)
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
CviLux
CI1406M1VL0-NH
1.0 mm
6 pins
1 pcs
BLE-6PINS-CCAACC
Backlight Driver :
No



Innolux M270KCJ-K7B Packing Details

Package Box : Quantity Weight Box Size
10 pcs / box 34 Kgs 691×295×457 mm (L×W×H)



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
